JVC 4DD-5 CD-4 decoder |
|||||||||||||||||
From about 1974![]() |
|||||||||||||||||

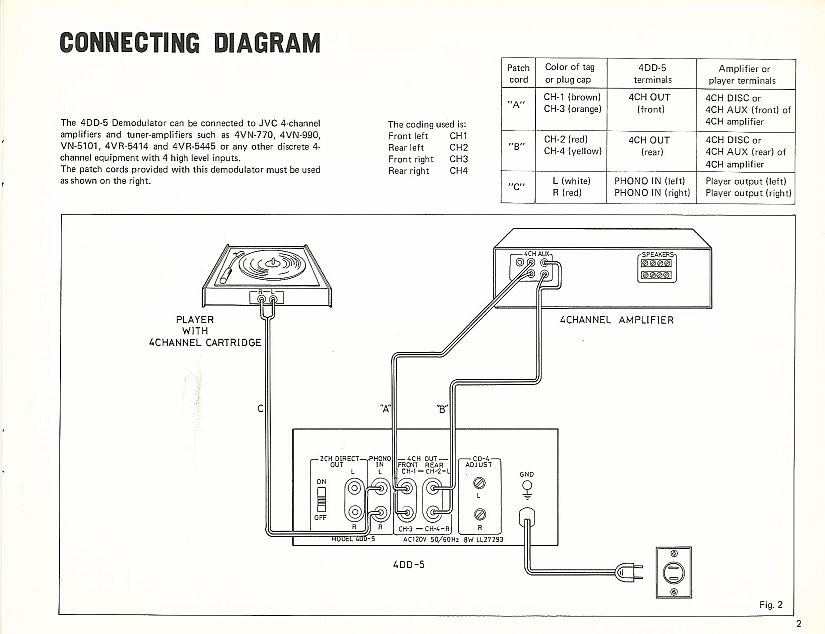

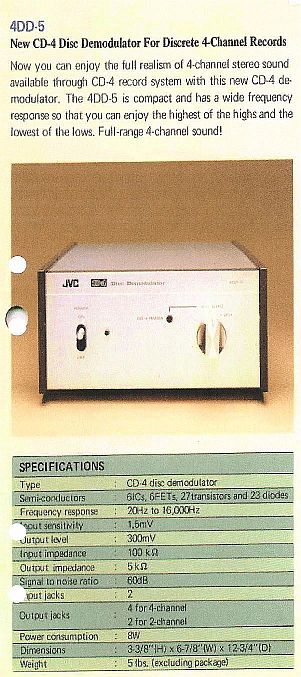

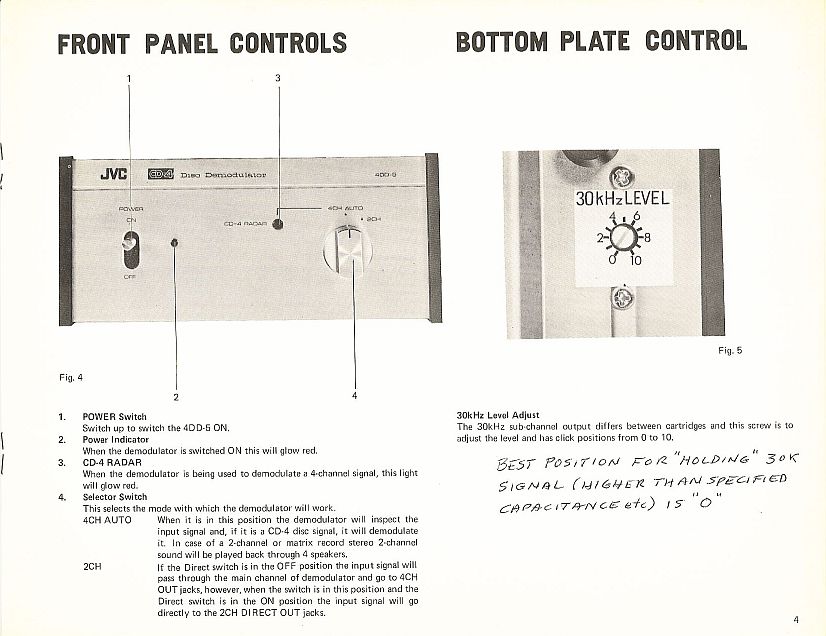

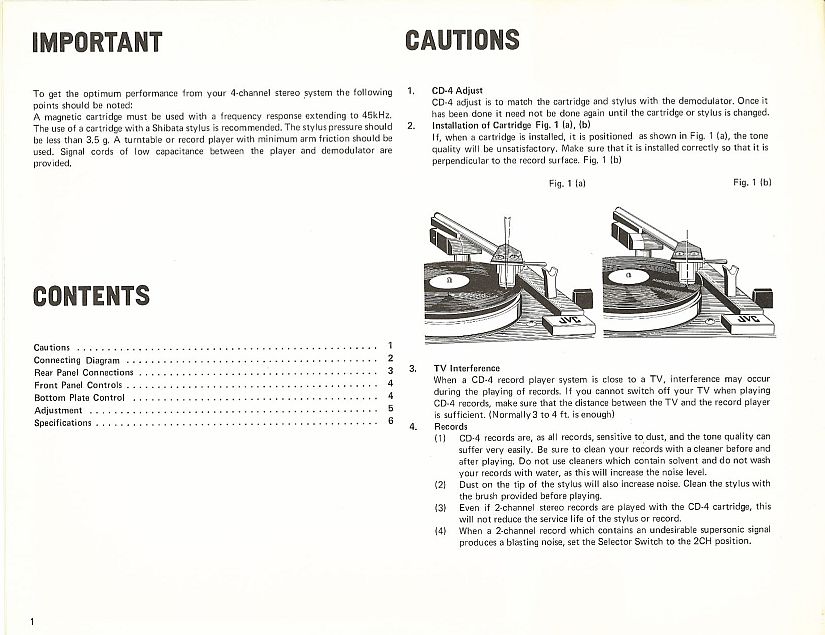

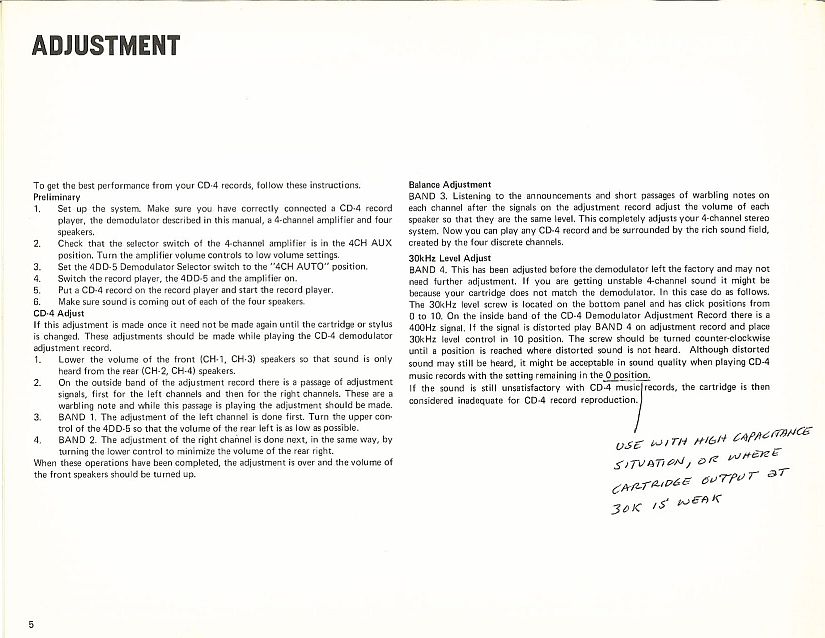

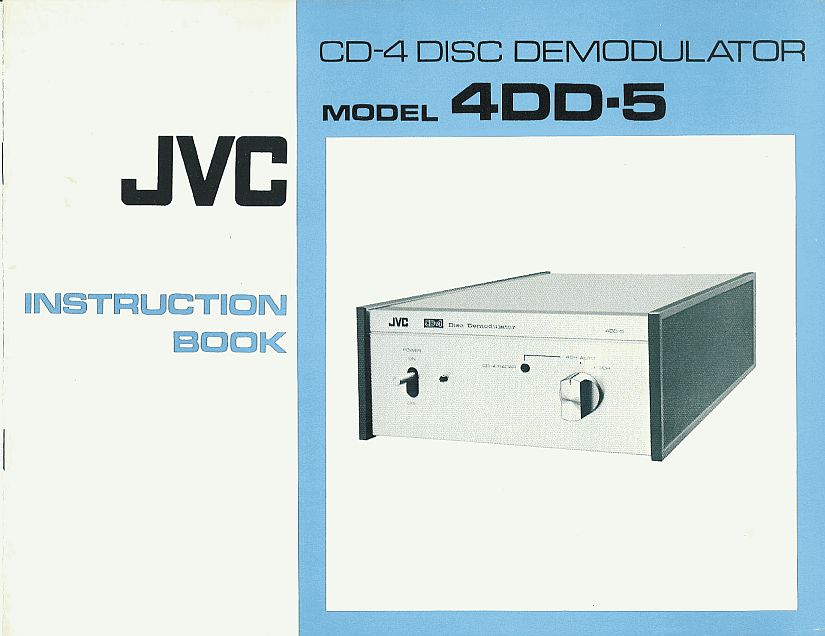

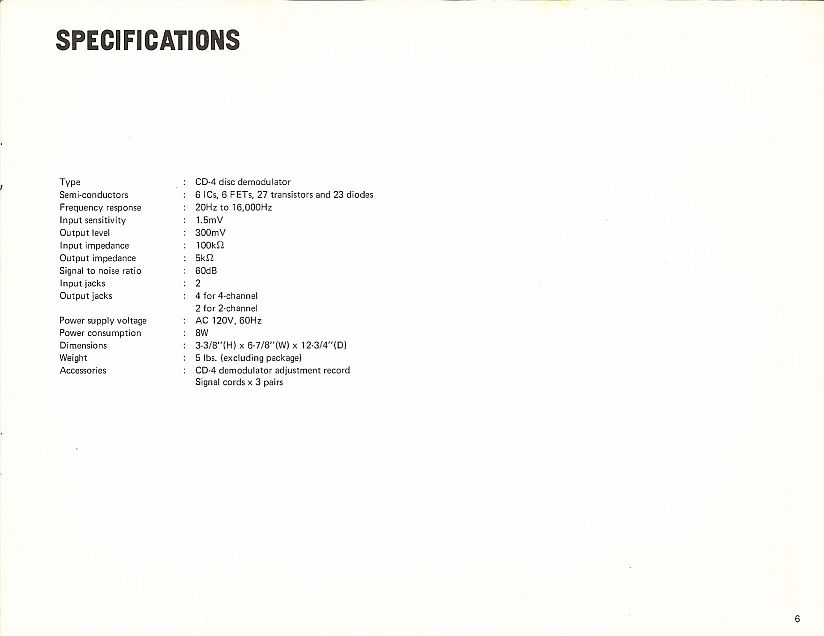

Click on picture below for data sheet![]() |
Here is the circuit diagram as a PDF.![]() |
||||||||||||||||

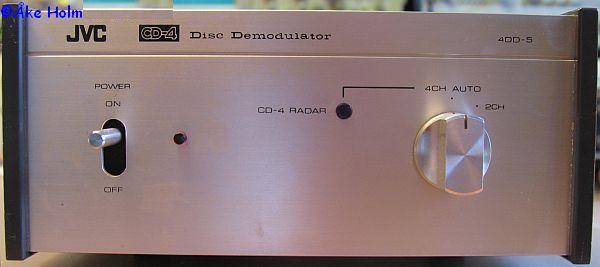

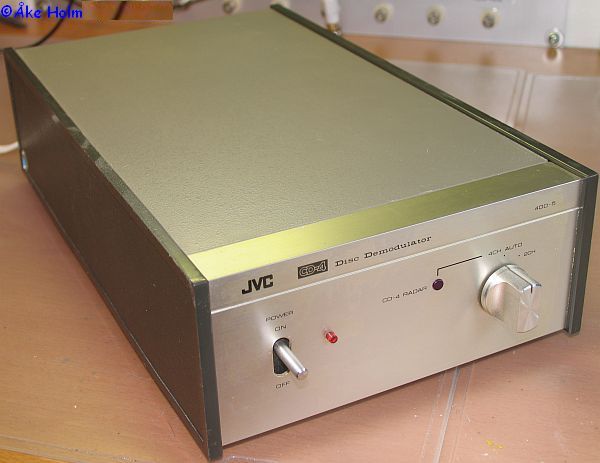

Front panel![]() |
|||||||||||||||||

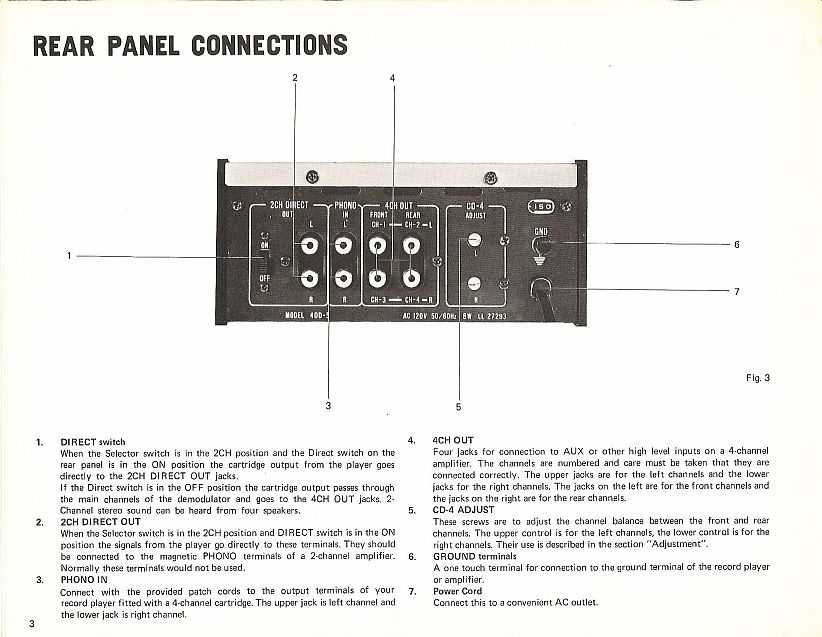

Rear panel![]() |
|||||||||||||||||

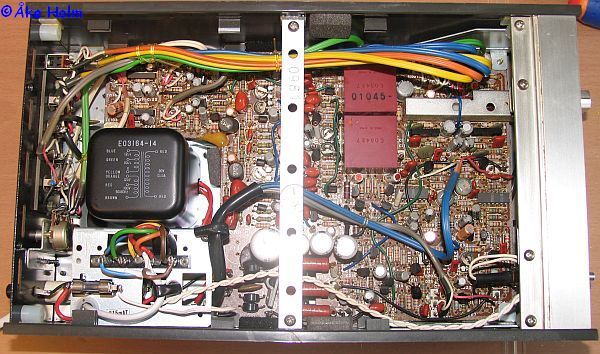

Top view![]() |
|||||||||||||||||
Some data measured with Rohde & Schwarz

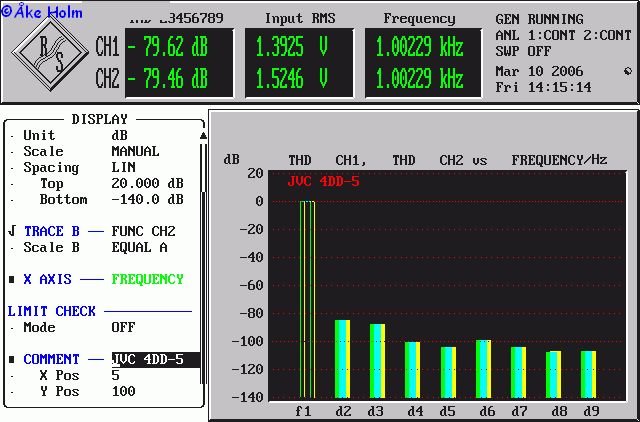

UPL02: THD at 1 kHz with 10 mV at input ![]() |
|||||||||||||||||

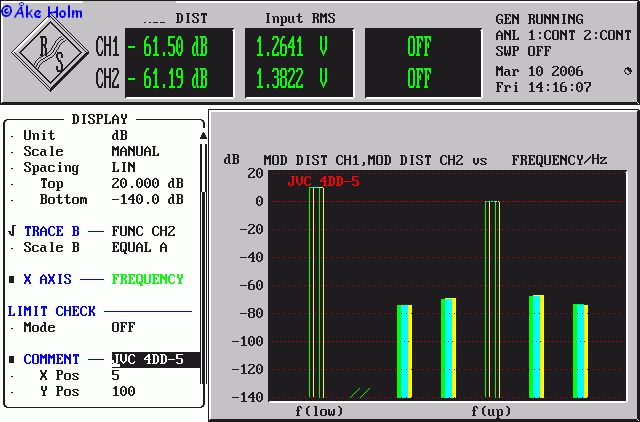

IMD![]() |
|||||||||||||||||

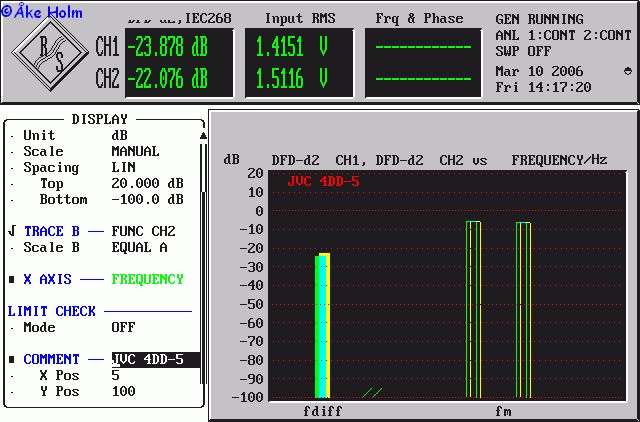

DFD - not so good.![]() |
|||||||||||||||||

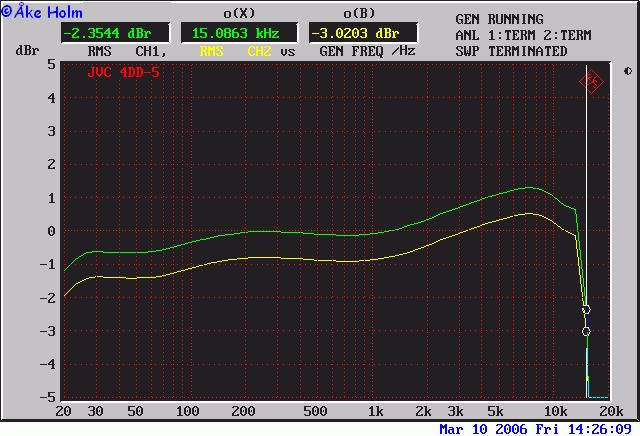

Frequency response - RIAA. Falls rapidly above 15 kHz due to
decoding.![]() |
|||||||||||||||||

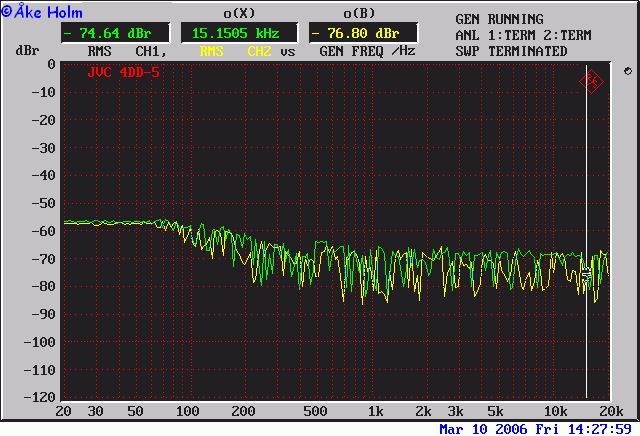

Noise floor linear, 0 dB = 1,3 Volts output![]() |
|||||||||||||||||

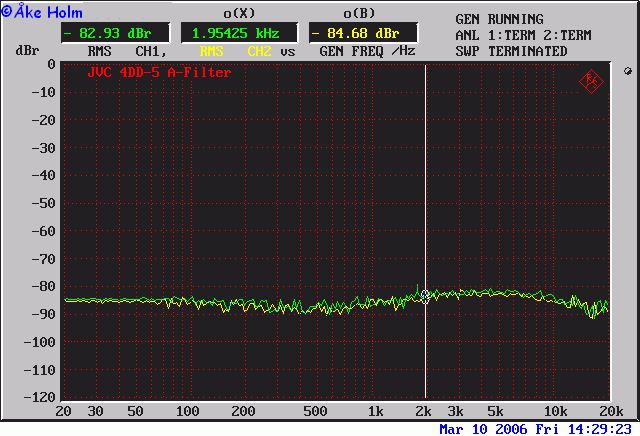

Noise floor with A-filter![]() |
|||||||||||||||||
|
|||||||||||||||||
