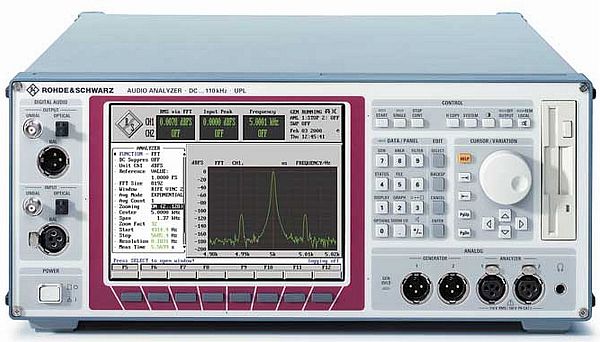

Rohde & Schwarz UPL02-B1 Audio Analyzer |
|
|
|
|
|
Measuring range: 10 Hz - 110 kHz |
Data sheet as PDF 719 kB |

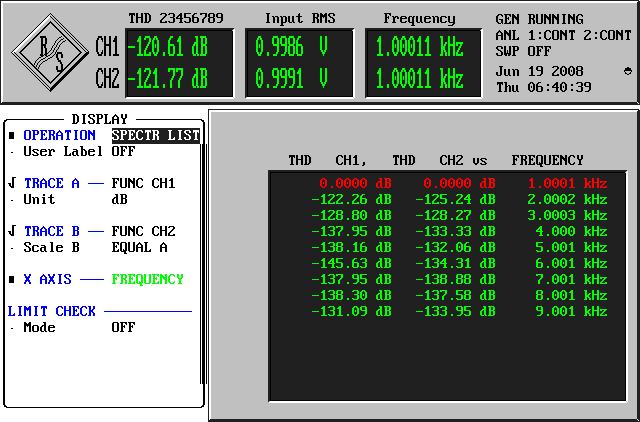

THD internal oscillator + analyzer = -122 dB = 0,00008 % at 1kHz (With option B1 - Low distortion oscillator) ![]() |
|

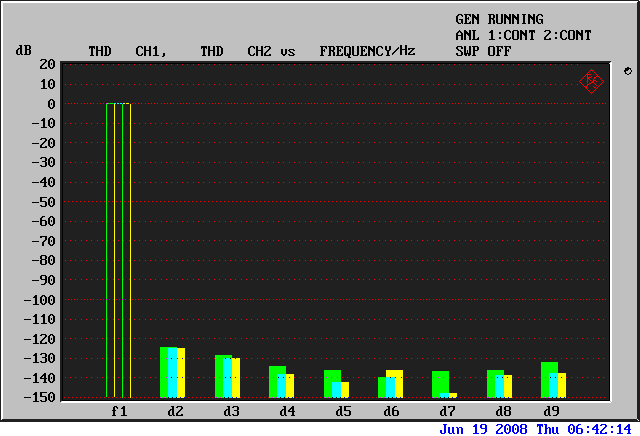

Same as above but values for each harmonic![]() |
|

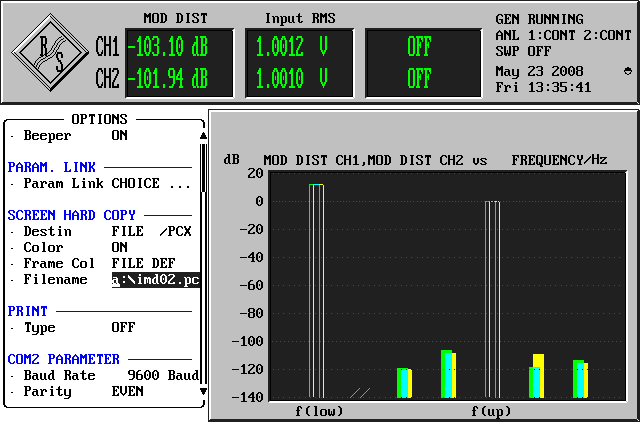

IMD internal oscillator + analyzer = -103 dB = 0,00071%![]() |
|

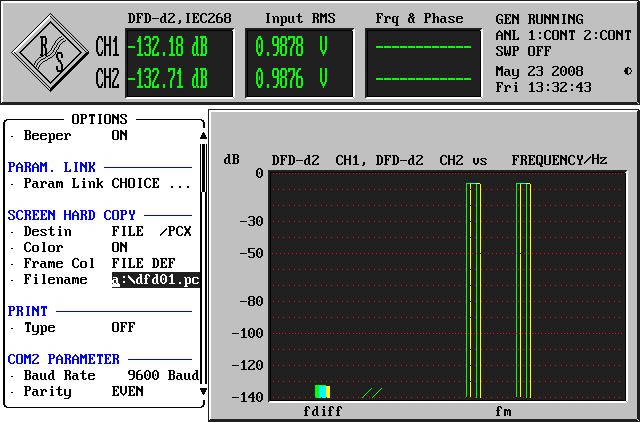

DFD internal oscillator + analyzer = -132 dB = 0,000025 %![]() |
|
