Hameg HZ540/540L


Near-Field Probe Set

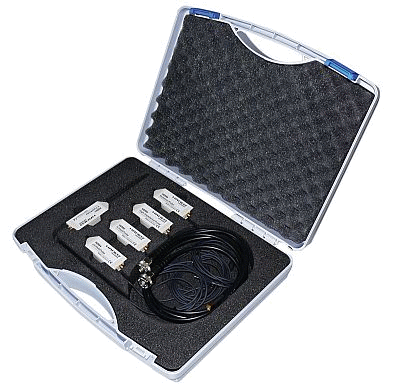

The HZ540 is an active close field probe set designed for use as a diagnostic aid in the solution of emissions problems.
The HZ540 set consist of:
HZ551  Electric Field Probe
HZ552 Magnetic Field Probe
HZ553 High Impedance Probe

The HZ540L set consist of:
HZ551  Electric Field Probe
HZ552 Magnetic Field Probe
HZ555 Low Capacitance Probe

They feature different sensitivities and reception characteristics and can be used along with a variety of spectrum analyzers, EMI receivers or oscilloscopes.

The probes are designed to assist in providing quick identification of signal sources. It can be used to diagnose emissions from circuit boards, integrated circuits, PC board edge runs, ground plane currents, ribbon cables, corner seams and similar interference sources.

The sets include magnetic field probes as well as a probe for electric field signals. The probes cover a frequency range from 30 MHz to 3 GHz providing close field relative readings. The probes can be powered by Hameg spectrum analyzers directly or any 6 VDC source.

The H-field probe provide signals that are proportional to the magnetic field strength. This enables to localize interference sources with relatively high precision. The E-field probe is the most sensitive of the sets. It can be used to assess the total effect of shielding on a tested circuit. The high-impedance probe can be used to determine signals on contacts without degrading signal performance by the probe capacity.
