Hameg HZ530


Near-Field Probe Set


The HZ530 Probe Set consists of 3 active broadband probes for EMC diagnosis. The probes are designed for connection to a HAMEG spectrum analyzer and have an impedance of 50 Ω at the coaxial output. The probes can be powered by the spectrum analyzer or batteries. The slim format ensures easy access to the test object even in confined test environments.

The H-field probe sends a voltage that is proportional to the magnetic field strength to the spectrum analyzer. This makes it possible to localize sources of interference with relatively high precision.

The high-impedance probe is a high-ohm unit used to determine radio frequency interference levels on individual contacts or printed circuit board conductors.

The E-field probe is the most sensitive of the three probes. It can be used to assess the total effect of shielding and filtering in a tested unit.

Technical specifications at 23°C 2C

Frequency range: 100 kHz to 1 GHz
Input voltage: 6 V DC from spectrum analyzer or batteries, 4 x Mignon (AA), batteries not included
Supply current: approx. 10 – 24 mA DC
Probe dimensions: 40 x 90 x 195 mm
Enclosure: Plastic, inner electrical shielding

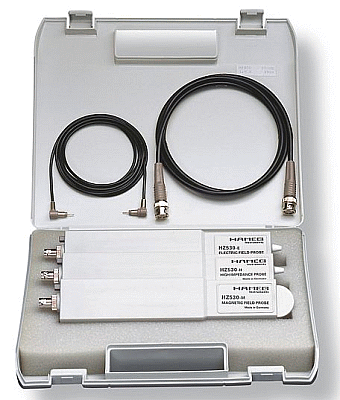

Set includes: 1 E-field probe, 1 H-field probe, 1 high-impedance probe,1 BNC cable, 1.5 m,1 power cable,Operator’s Manual,Robust carrying case

Manual as PDF HERE
