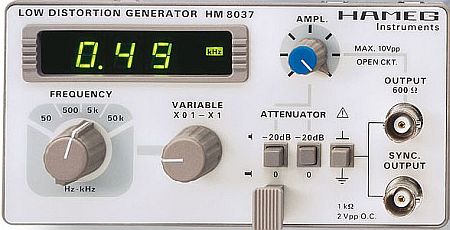

HM8037 - Low distortion generator

Discontinued, no replacement. If you work with audio, get one if you find one !!

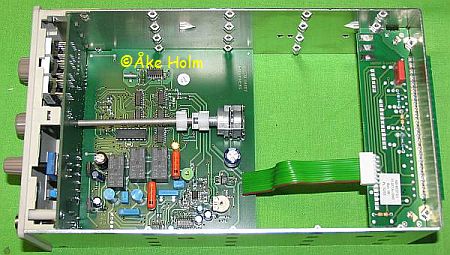

Interior view

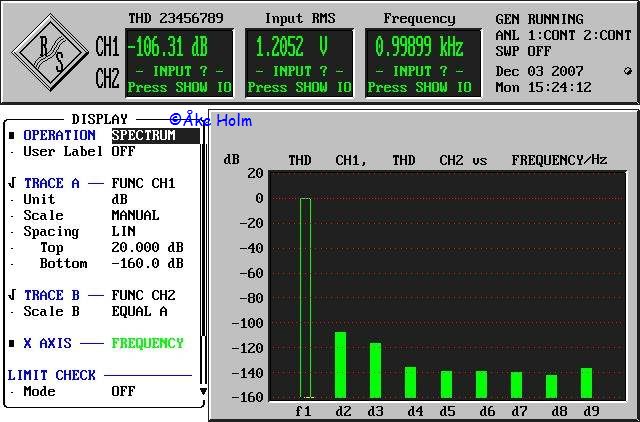

Inherent distortion in the HM8037 is much lower than what Hameg states

Frequency Hameg's spec. My result on R&S UPL02
20 Hz < 0,01 % = <-80 dB 0,0018 % = - 95 dB
50 Hz < 0,01 % = <-80 dB 0,00050 % = -106 dB
200 Hz < 0,01 % = <-80 dB 0,00022 % = -113 dB
500 Hz < 0,005 % = <-86 dB 0,00032 % = -110 dB
1 kHz < 0,01 % = <-80 dB 0,0005 % = -106 dB
2 kHz < 0,01 % = <-80 dB 0,0010 % = -100 dB
5 kHz < 0,01 % = <-80 dB 0,0025 % = -92 dB

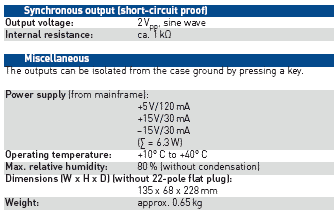

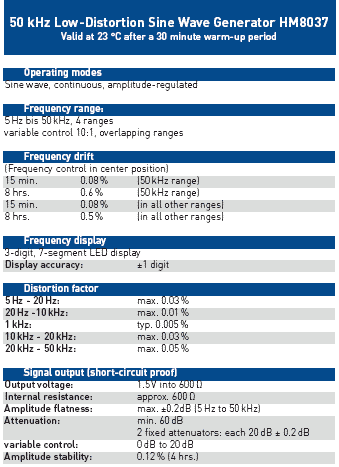

Datasheet as a PDF-file here
Manual as a PDF-file here
Service manual as a PDF-file here
