MW13-38 black/white MG13-38 (green), MU13-38 (blue), MY13-38 (red) |

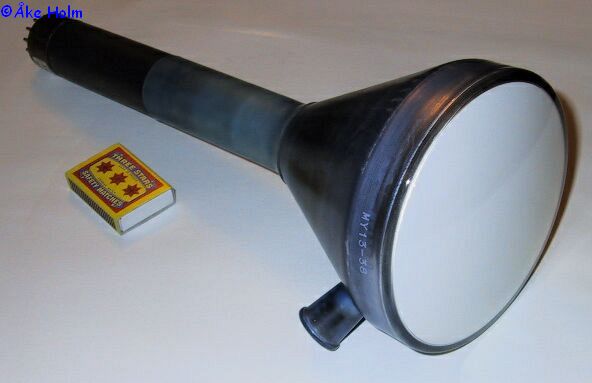

This is a Philips 5" CRT with
magnetic deflection. It was used for large screen projection television receivers.
Note that the anode voltage is 50 kV. Below is a close-up of the anode
connector. |

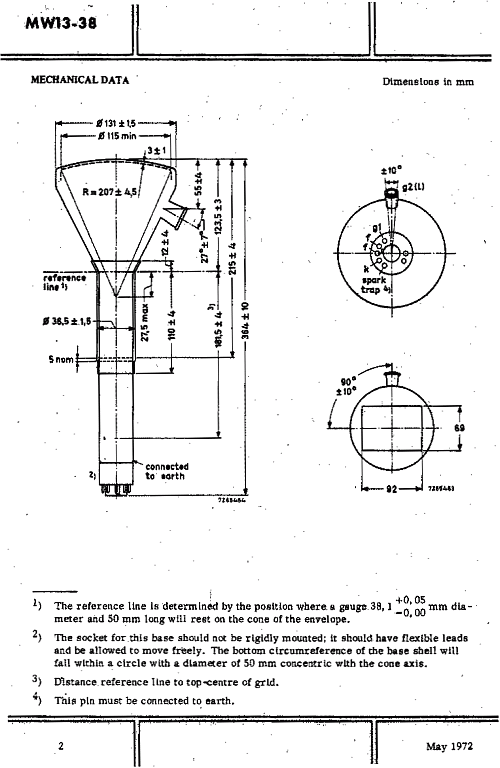

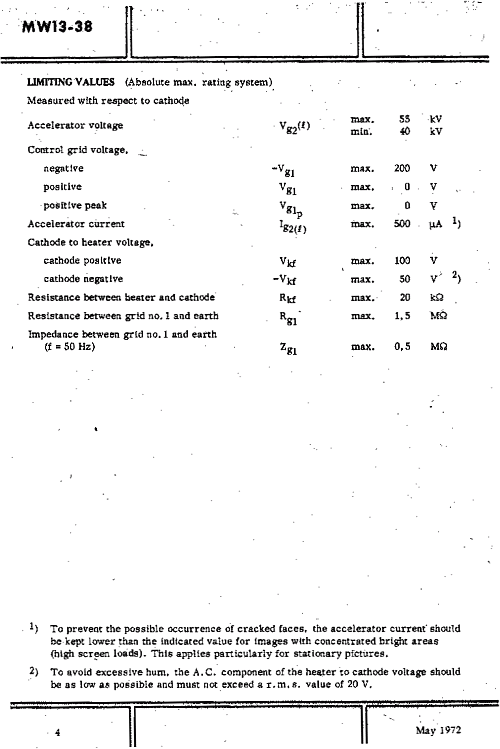

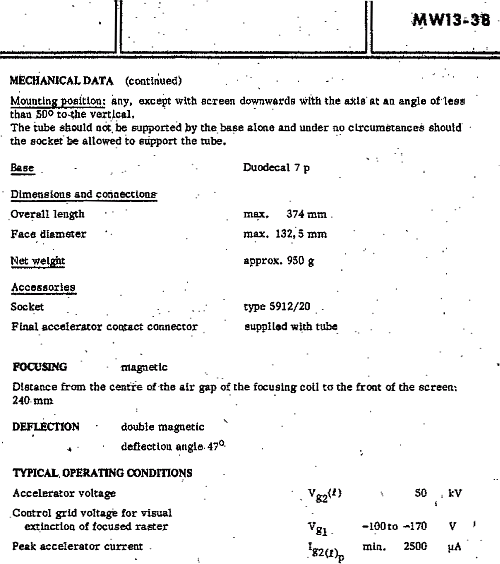

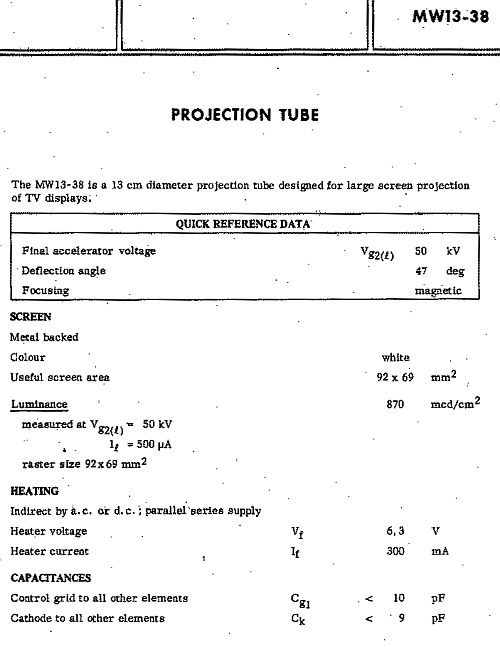

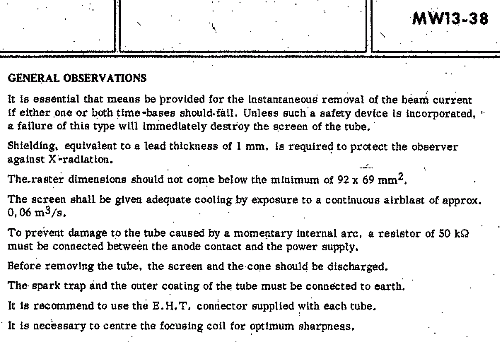

Click on thumbnails for data sheets |
|
|
|
|
|
|
|
|
|
|
|
