MC6-16 | |

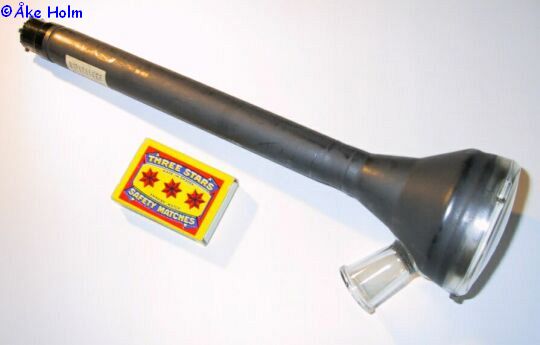

This is a Philips 2" CRT with magnetic deflection. It was used for flying spot scanners. The anode voltage is 25 kV and to prevent arcing there is a special shaped insulator for the anode connector. It is similar to MW6-2 but with a different phosphor. | |
|
|
|
|
|
|
|
|
|
|
|
|
