Telefunken M28-10GM

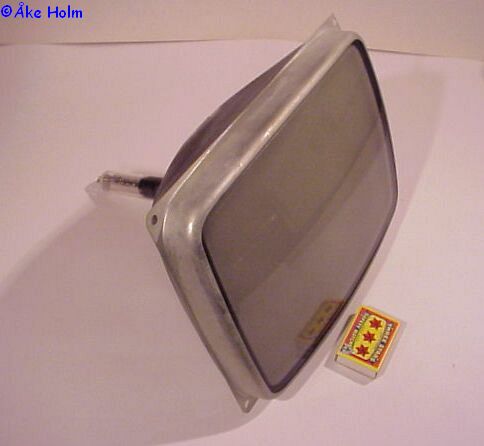

 This is a Telefunken CRT with magnetic deflection. It was intended for industrial use or as radar display (GM-phosphor). The useful screen dimension is 171 x 228 mm (10,5" diagonal)
