Telefunken DG7-74A

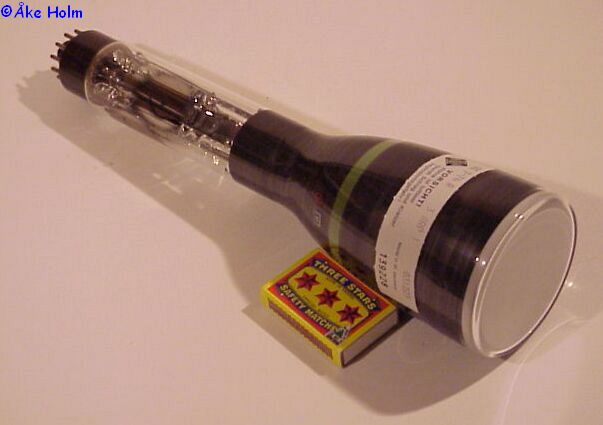

dg7-74a.jpg (23703 bytes) This is a Telefunken single beam CRT with flat screen and post-deflection acceleration. It was intended for small wide-band oscilloscopes. The screen has a diameter of 76 mm (3")
