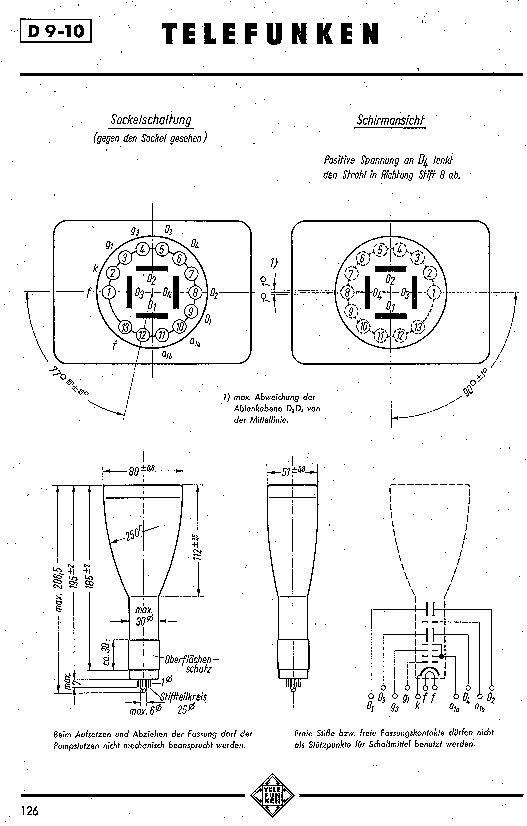

Telefunken D9-10GH

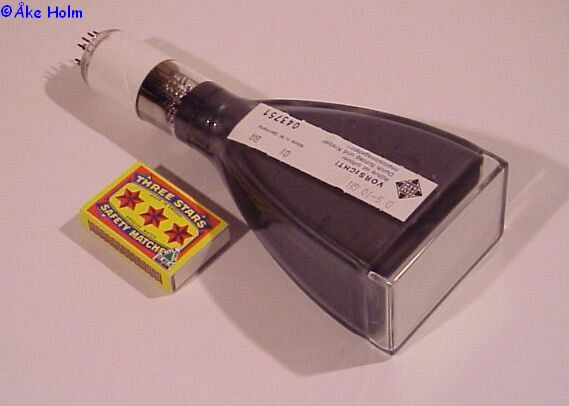

 This is a Telefunken CRT with flat screen for small universal  oscilloscopes and indicator applications. The screen dimension is 50 x 80 mm.
