RT nov 1972


How to build a circuit to enhance the
picture sharpness on Philips VCR N1500.Described in RT No 11/1972.

With crispening

Without crispening

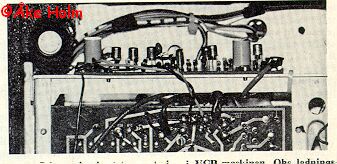

Picture shows how the board was installed inside the VCR.
I have omitted the text in Swedish.


Needless to say, but similar types of circuits have been incorporated in video recorders for many years now.
