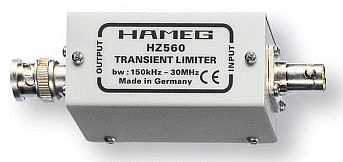

The HZ560 Transient Limiter protects the input circuits of spectrum analyzers and test receivers.
The input of the Transient Limiter is connected via BNC cable to the signal source. The output can be connected directly to the spectrum analyzer.
Technical specifications at 23°C ± 2°C
Frequency range: 150 kHz - 30 MHz
Feed-through attenuation: f = 150 kHz – 30 MHz
a = 10 dB + 1.5 / -0.5 dB
at f < 1 kHz a is > 90 dB
at f > 100 MHz a is > 50 dB
Max. input power: 2 W (average) (+33 dBm)
Max. input voltage: ±50 V DC
VSWR: 1.5:1 or better
Connections: BNC (input and output)
Dimensions: 67 x 32 x 32 mm
Manual as PDf here.
