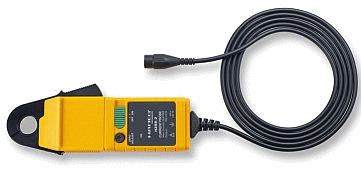

This AC/DC Test Unit is used to measure currents from 1 mA to 30 A over a broad frequency range. The measurement principle is based on a sensitive echo sensor that registers the magnetic field generated by the current flow. A high degree of accuracy is achieved even for complex curves. The output voltage is proportional to the measured current and ideally suited to display on an oscilloscope. The test unit conforms to the safety standards defined in IEC 61010.
Measurement range: ±30 ADC / 20 AAC
Accuracy: ±1% ±2mA
Frequency range: DC to 100 kHz
Resolution: 1 mA
Output voltage: 100 mV/A
Load impedance: > 100 kΩ
Voltage stability: 3.7 kV / 50 Hz / 1 minute
Connection: BNC-Cable, 2 m
