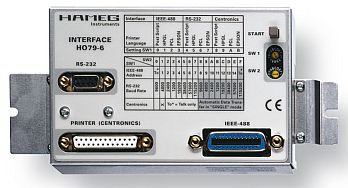

HO79-6 Multifunction Interface

Bidirectional data transfer
SCPI programming commands
Direct printing of the signal (without PC)

IEEE-488 Interface
IEEE-488 compliant socket (24-pin)
Talk-only mode
Device mode (address selectable from 1 to F)

RS-232 Interface Full duplex (V.24)
9-pin connection to D-Sub socket
Automatic Baud rate recognition
Baud rate from 1,200 to 115,200 Baud


Parallel Interface (Centronics)
25-pin connection to D-Sub socket
PostScript, HPGL, PCL and EPSON

For the Oscilloscope HM507

Manual for HO79-2/3 as PDF here

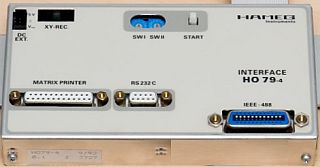

Manual for HO79-4 as PDF here
Manual for HO79-5 as PDF here
Manual for HO79-6 as PDF here
