Hameg HO3508

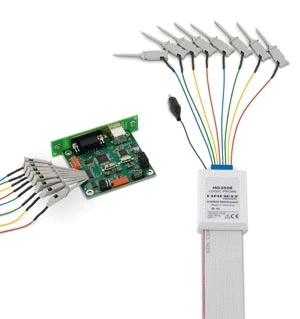

Logic probe HO3508 for MSO (Mixed signal oscilloscope) extension HMO3522 and HMO3524
With the logic probe HO3508 8 logic channels (LCH0...LCH7 or LCH8...LCH15) are available in MSO mode.
The signal representation on the oscilloscope will be either binary or hexadecimal.
The threshold can be adjusted for 8 logic channels as a group at the oscilloscope.
The activation of the logic channels is indicated by a LED on the logic probe.
