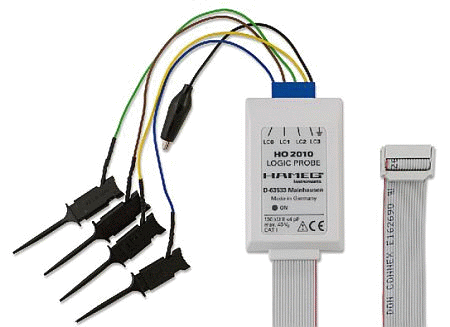

Logic probe HO2010 for the CombiScopes® HM2008
With the logic probe four logic signal channels (LCH0 to LCH3) are available in digital mode
1 bit signal representation at the oscilloscope, either binary or hexadecimal
The threshold can be adjusted for all logic channels together at the oscilloscope.
The active logic channel will be indicated by a LED on the logic probe.
Specifications
Channels: 4
Input impedance: 100 kΩ II < 4 pF
Max. input voltage: 40 V (DC + peak AC)
Measuring category: I
Cable length: approx. 1 m
