HM8080/HM800 - Blank unit |
 |

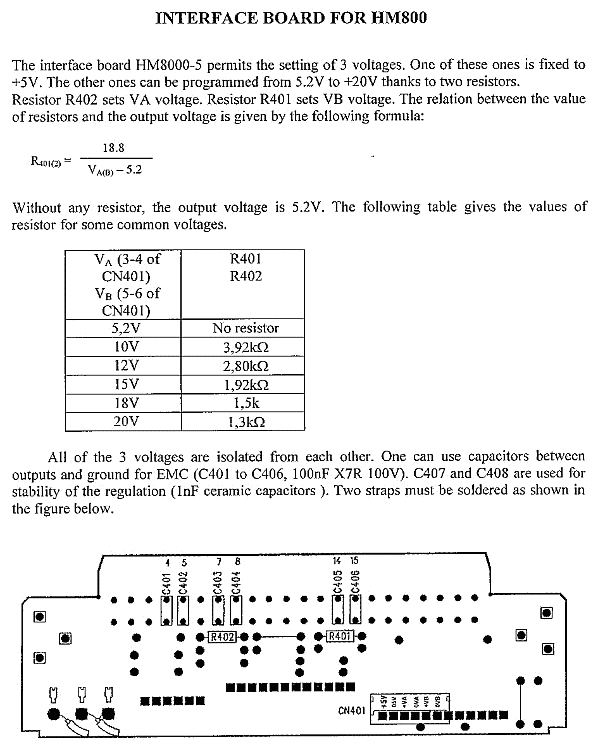

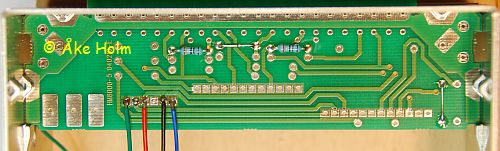

And this is what it looks like when configured for:
+5V = green (pin 1 from the left)
+12 V = red (pin 3)
0 V = black (pins 2, 4 and 5 connected on the rear side)
-12 V = blue (pin 6)
|
|||
|
|||

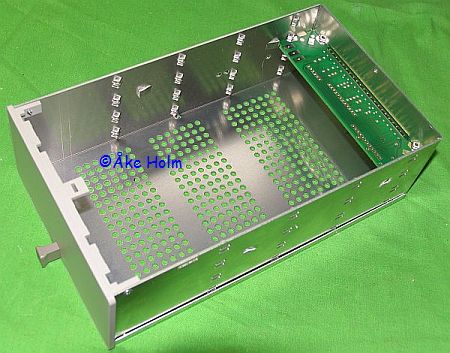

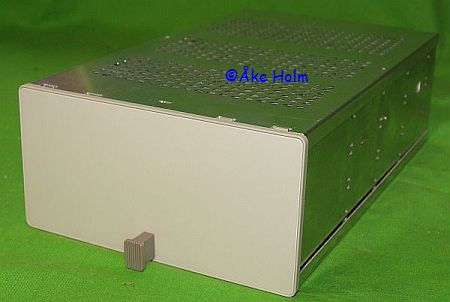

| Blank cabinet for building own equipment for use in the HM8001 or HM8003 mainframe. | |||
|
|||
And this is what it looks like when configured for: +5V = green (pin 1 from the left) +12 V = red (pin 3) 0 V = black (pins 2, 4 and 5 connected on the rear side) -12 V = blue (pin 6) |
|||
|
|
|||
|
|
