Dynaco Stereo 120 |
| |
 |
|
 |
Dynaco's specifications:
Intermodulation distortion: Less than 0,5%
Noise: 95 dB below rated output
--------
Tested data:
1. THD at 1 kHz and 1 W per channel
2. THD at 1 kHz and 10 W per channel
3. THD at 1 kHz and 50 W per channel
4. IMD at 1 W per channel
5. IMD at 10 W per channel
6. IMD at 50 W per channel
7. DFD at 1 W per channel
8. DFD at 10 W per channel
9. Frequency response at 1 W per channel
10. Frequency response at
10 W per channel
11. Frequency response at
50 W per channel
12. Noise floor linear
13. Noise floor A-weighted
|

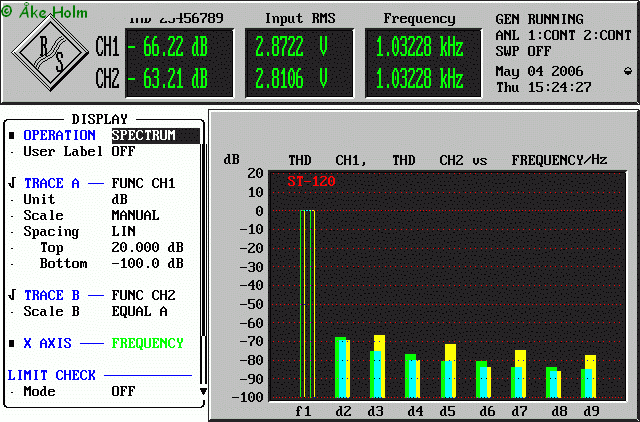

1. THD at 1 kHz and 1 W per channel
Left = -66 dB = 0,05 %
Right = -63 dB = 0,07 %
 |
|

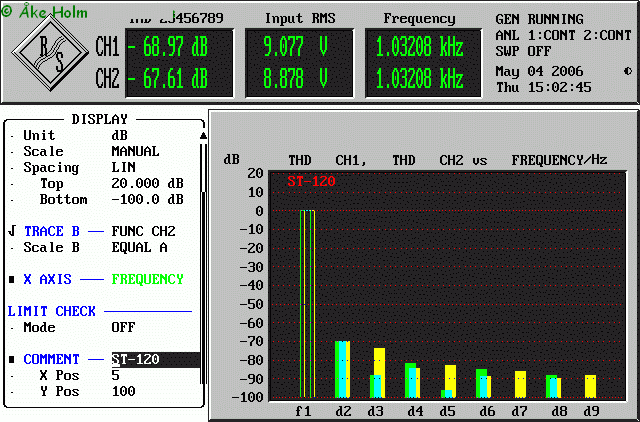

2. THD at 1 kHz and 10 W per channel
Left = -69 dB = 0,035 %
Right = -68 dB = 0,04 %
 |
|

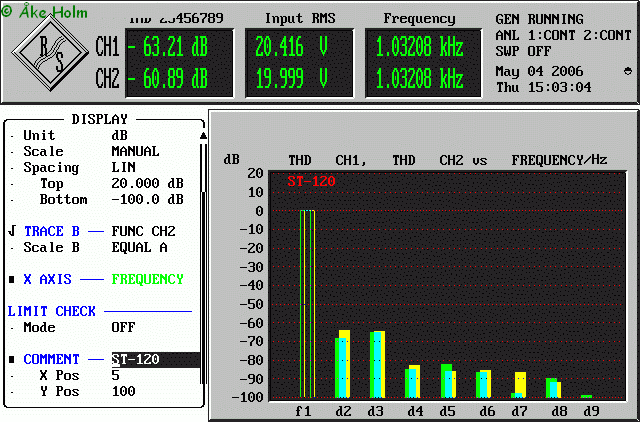

3. THD at 1
kHz and 50 W per channel
Left = -63 dB = 0,07 %
Right = -61 dB = 0,088 %
 |
|

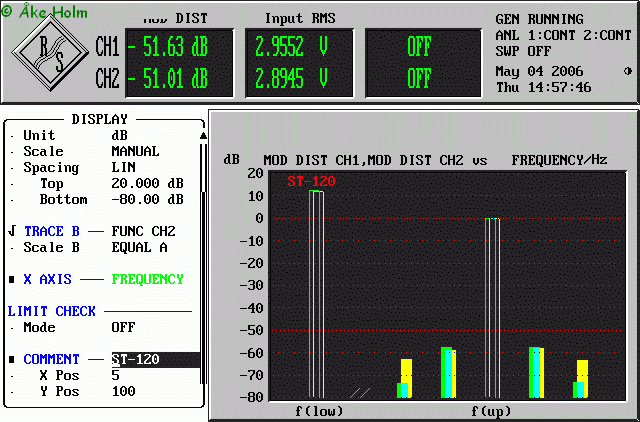

4. IMD at 1 W per channel
Left = -52 dB = 0,25 %
Right = -51 dB = 0,28 %
 |
|

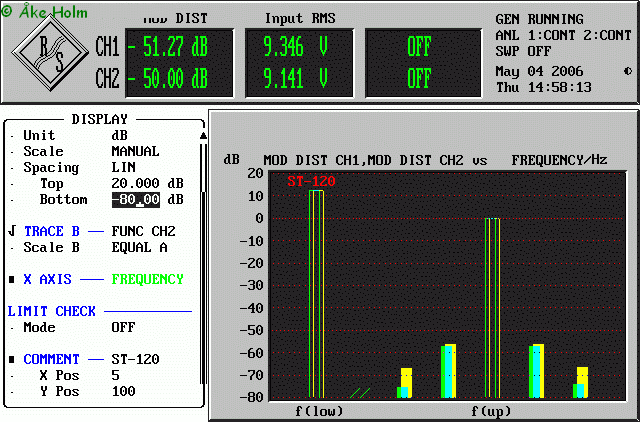

5. IMD at 10 W per channel
Left = -51 dB = 0,28 %
Right = -50 dB = 0,316 %
 |
|

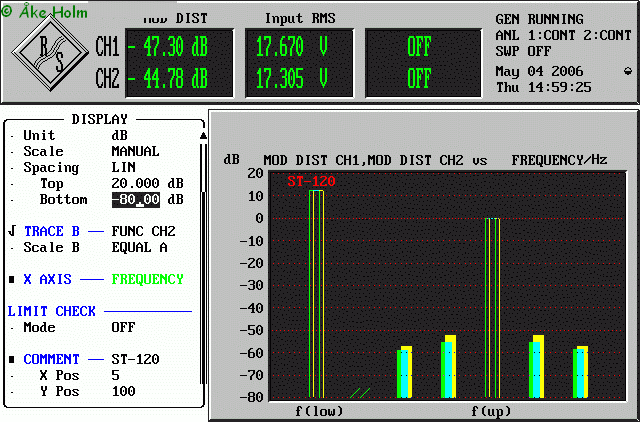

6. IMD at 50 W per channel
Left = -47 dB = 0,45 %
Right = -45 dB = 0,56 %
 |
|

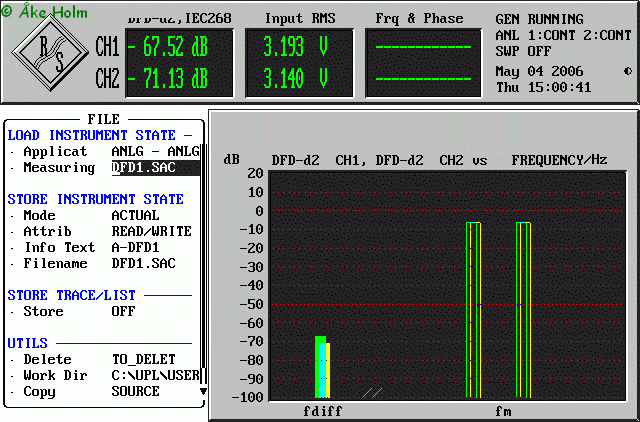

7. DFD at 1 W per channel
Left = -67 dB = 0,045 %
Right = -71 dB = 0,028 %
 |
|
8. DFD at 10 W per channel
Left = -67 dB = 0,045 %
Right = -67 dB = 0,045 %
 |
|

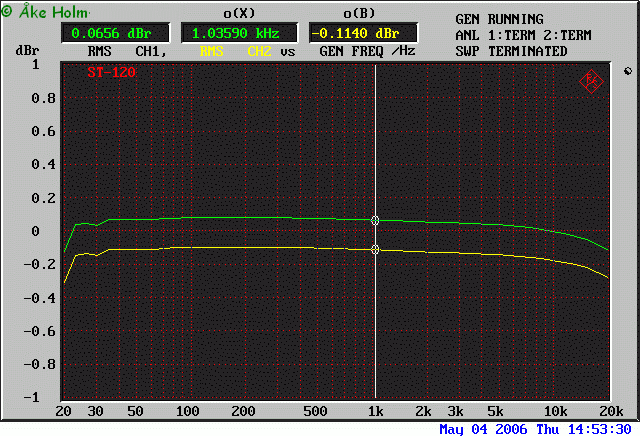

9. Frequency response at
1 W per channel
 |
|

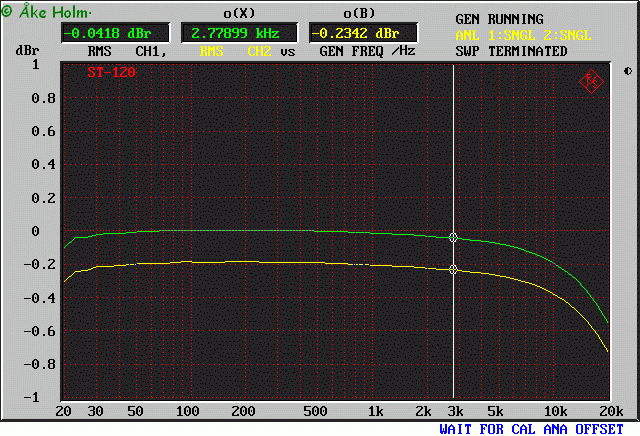

10. Frequency response at
10 W per channel
 |
|

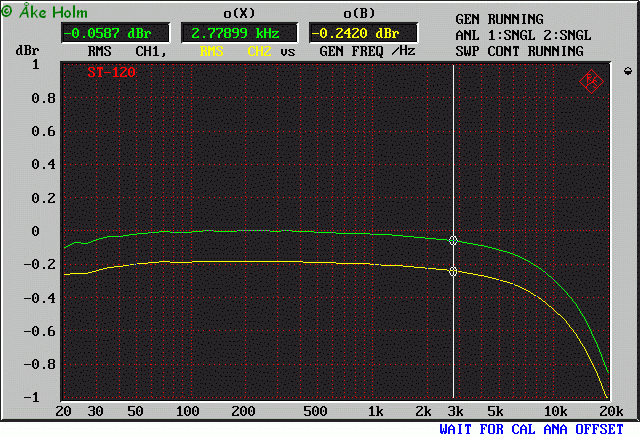

11. Frequency response at
50 W per channel
 |
|

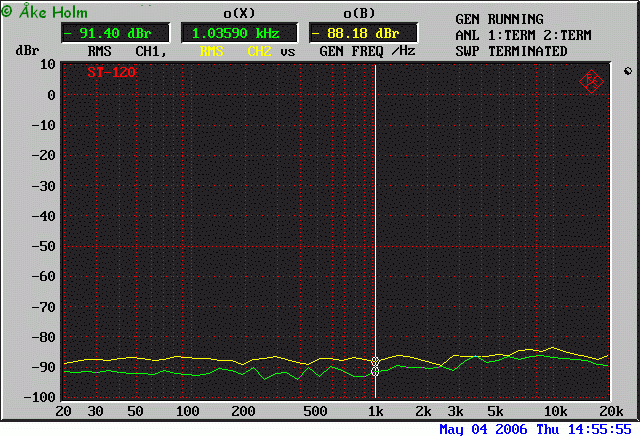

12. Noise floor linear
Relative to 1 W output
 |
|
13. Noise floor
A-weighted
Relative to 1 W output
 |
|
 |
