TFK U2343 |
![]() |

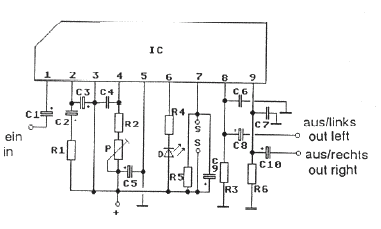

![]() This chip is nice because there is no separation adjustment. P is for adjusting the VCO. |
Availability: In Sweden at Kjell & Co article no. 90464 |
|

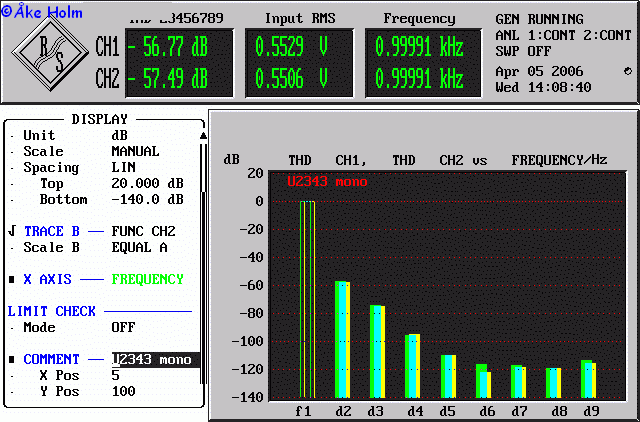

THD at 1 kHz mono![]() |
|

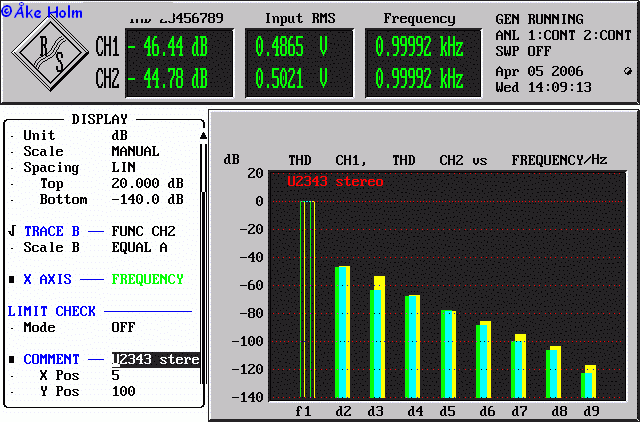

THD at 1 kHz stereo![]() |
|

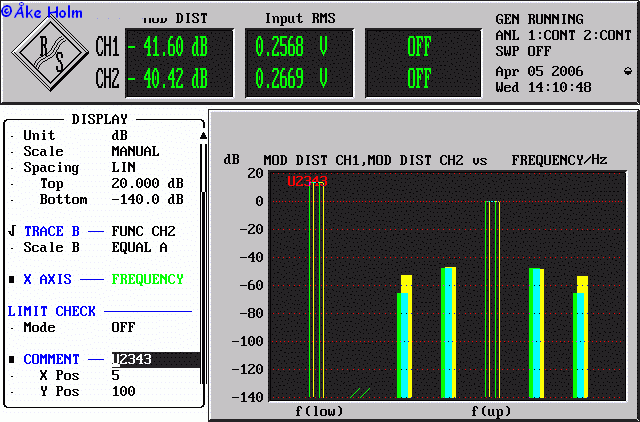

IMD![]() |
|

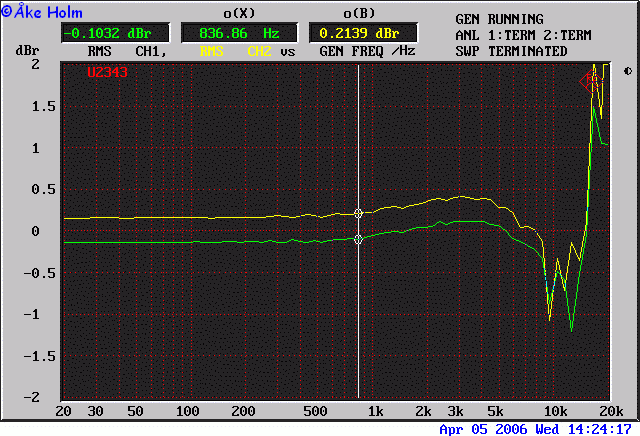

Frequency characteristic - the 19 kHz interferes at
the high end. The de-emphasis capacitors on the outputs have been changed from 15 nF to 12+2,2 nF (=14,4 nF) ![]() |
|

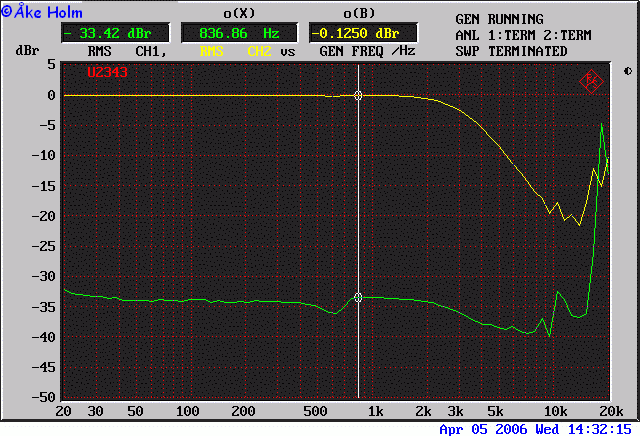

Channel separation. The roll off above 2 kHz is due to the low-pass filter (HP5489A) at the outputs in order to eliminate interference from the 19 kHz. ![]() |
|

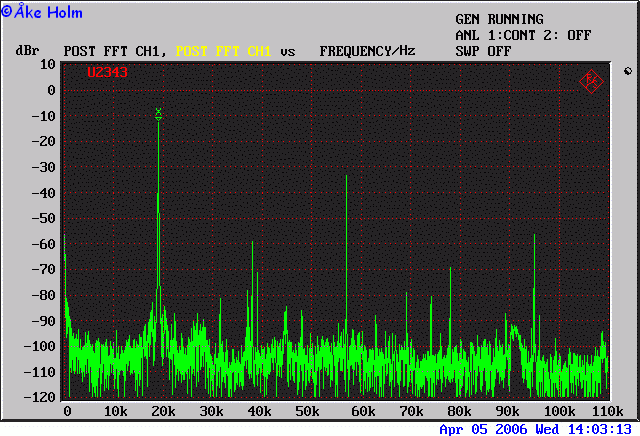

Frequency spectrum without modulation. 19 kHz and 57 kHz are quite high and a low pass filter is recommended. ![]() |
|

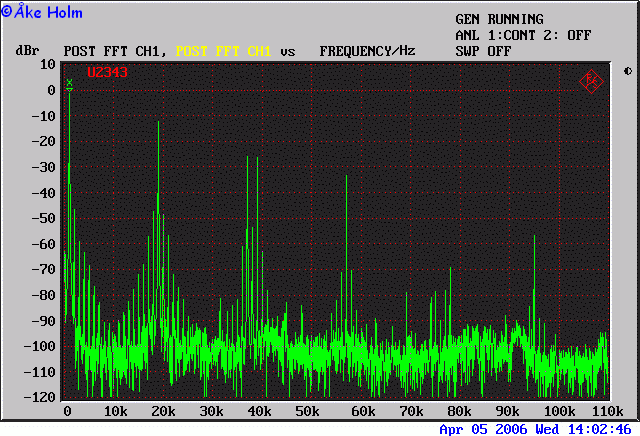

Frequency spectrum with 1 kHz signal![]() |
|
