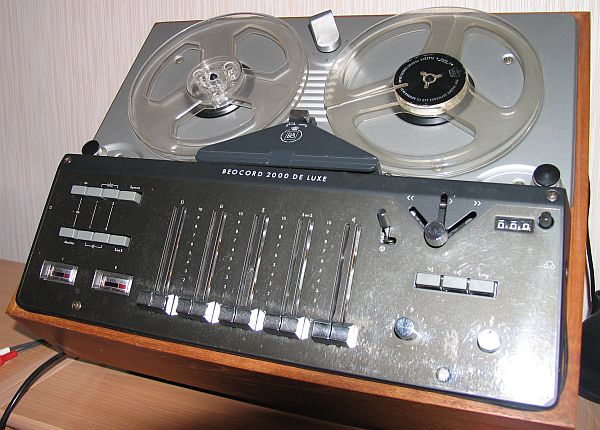

Bang & Olufsen Beocord 2000 DeLuxe




Some data from the service manual:
Speed Wow & flutter Frequency response S/N
19 cm/s <0,07% rms, <0,2% pp 40-16000 Hz ±2 dB 55 dB rel 3% THD
9,5 cm/s <0,11% rms <0,3% pp 40-12000 Hz ±2 dB
4,75 cm/s <0,18% rms <0,5% pp 40-6000 Hz ±2 dB


The info below is from the site Beocentral.com and is copyrighted by them.
Used with permission.


Diagrams and pcbs for:
Microphone amplifier
Phono amplifier
Radio amplifier
Recording amplifier
Playback amplifier
Output amplifier
Power supply
