Telefunken D8-11BG

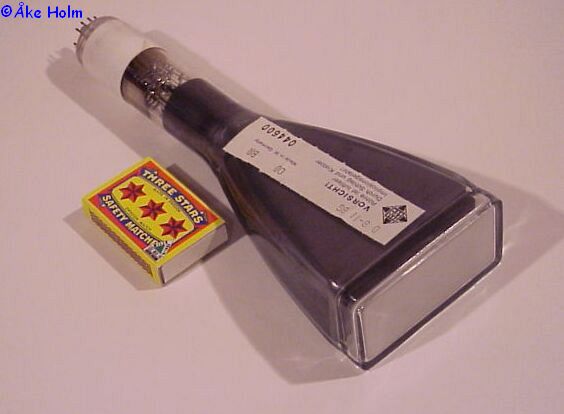

d8-11bg.jpg (22934 bytes) This is a Telefunken single beam CRT with flat screen for small oscilloscopes and indicator applications. The screen dimension is 40 x 75 mm.
