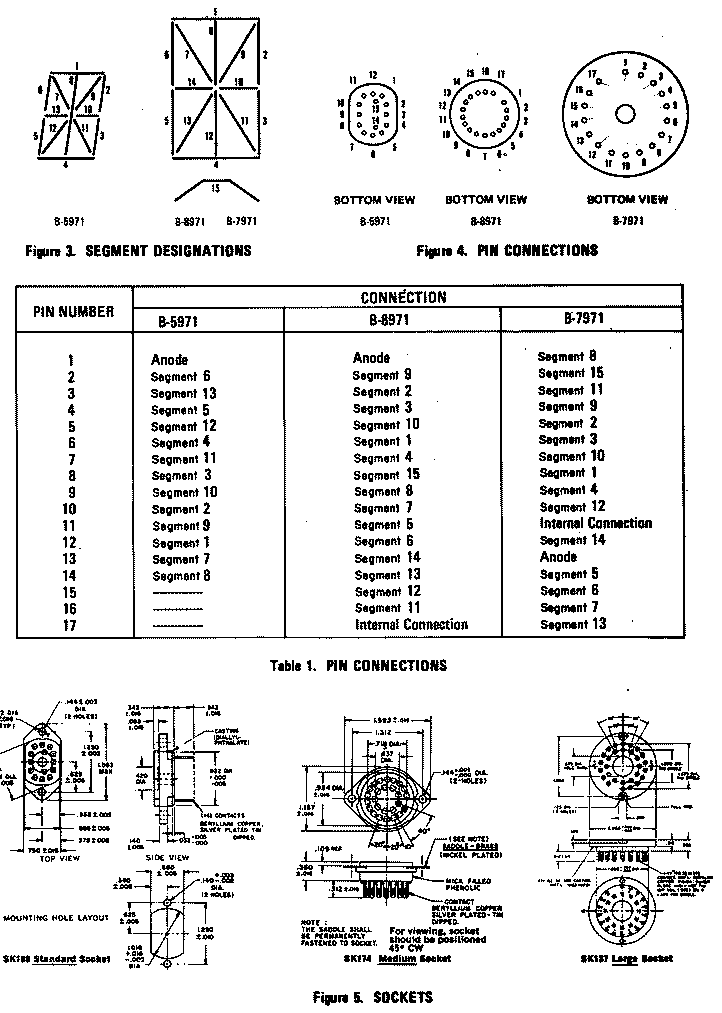

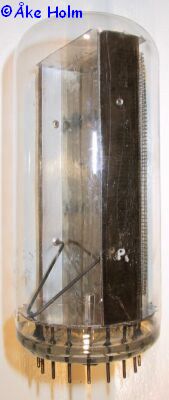

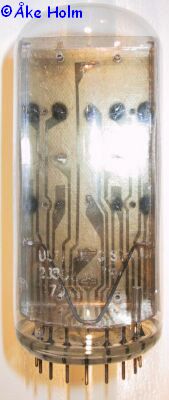

This tube has fifteen segments that can be lit in various combinations to show all the characters A-Z and digits 0-9. The segments are mounted on a "printed circuit board" and the anode is a mesh in front of the segments as you can see on the pictures above. The characters are 62 mm high. See also B5971

Digits

Characters
