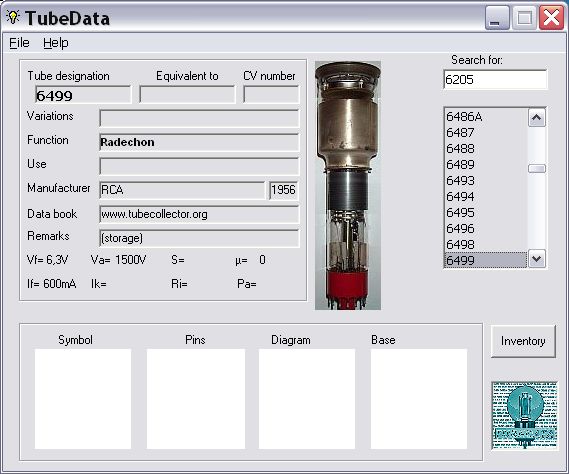

Radechon RCA 6499

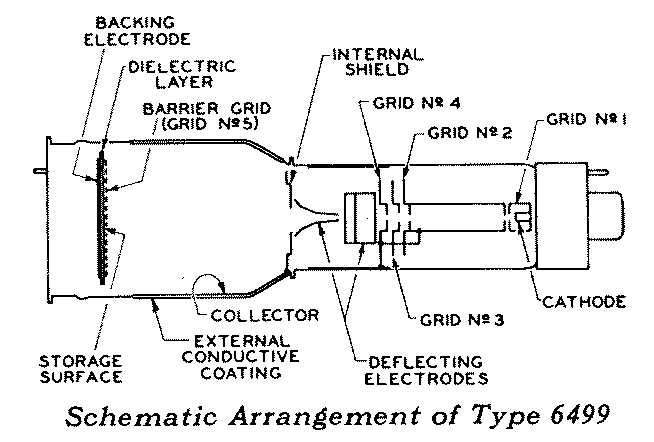

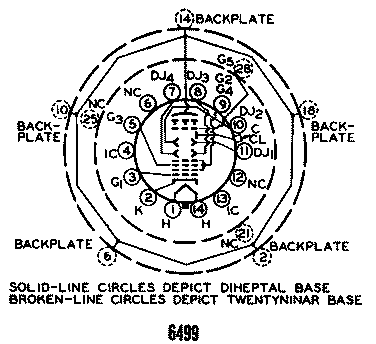

Charge storage tube of barrier-grid, single beam type intended for information-processing systems. Non-equilibrium writing and capacitance-discharged reading. Electron gun is of the electrostatic focus and deflection type. Base on large end of tube is small button twentyninar 8-pin. Base on small end is small-shell di-heptal 14-pin. Max length 12 7/32", max diam 3,35", max high voltage 1500 volts. Information in digital or analog form may be introduced to the active elements of the tube, stored (time controllable from microseconds to minutes), and then extracted at a rate the same or different from the writing rate.
