Some products designed by me for ScanTitling AB between 1989 and 2004 during which time more than 2000 systems were installed all over the world.
We were the first to manufacture PC-based subtitling and also the first company to deliver systems for Chinese and Thai subtitling via satellite.


ST961
Subtitle preparation unit as a plug-in board for ISA-buss.
For analog composite video.
Character resolution 25 nS.
With VITC reader (LTC optional).

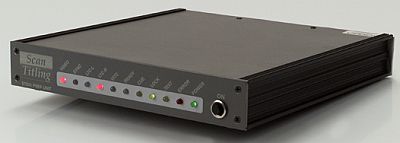

ST931
Subtitle preparation unit - stand alone model.
For analog composite video.
Character resolution 25 nS.
Complete with LTC and VITC readers.

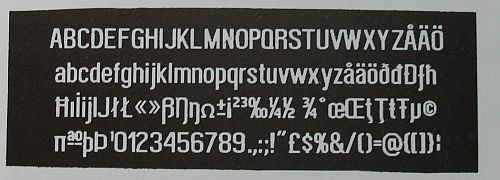

Flash memory for download of video fonts.

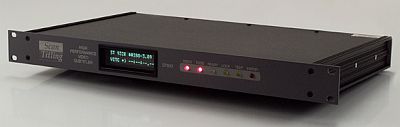

ST932
Subtitle transmission unit for analog composite or component (Y, Pb, Pr) video.
Character resolution 25 nS.
Complete with LTC and VITC readers.
Flash memory for download of video fonts.

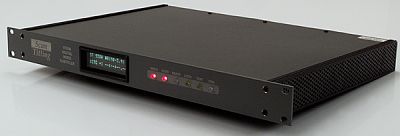

ST938
Subtitle transmission unit for serial digital component video 270 Mbit/s.
Antialiasing in 16 levels.
Complete with LTC and VITC readers.
Flash memory for download of video fonts.

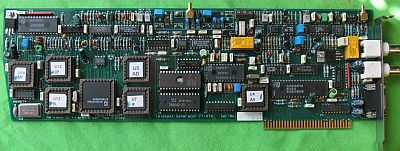

This board was a Teletext Generator which I made for FAB-Teletext Systems

The manual for the system with in-depth description of all functions as well as installation instructions for the different units.

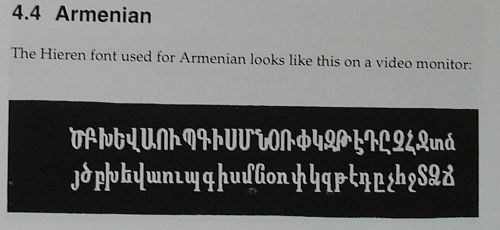

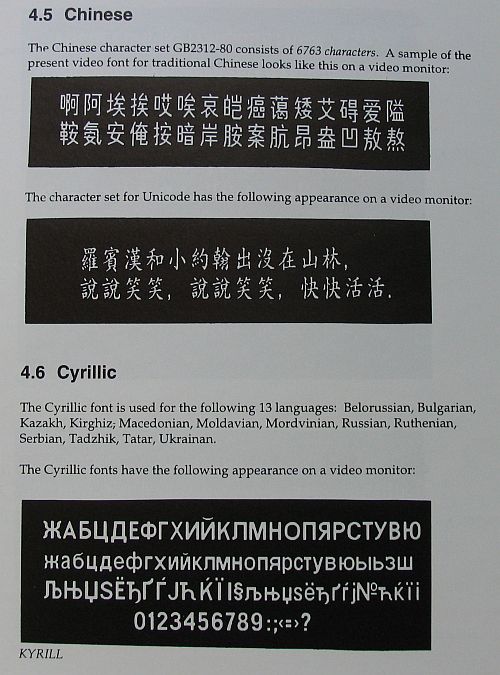

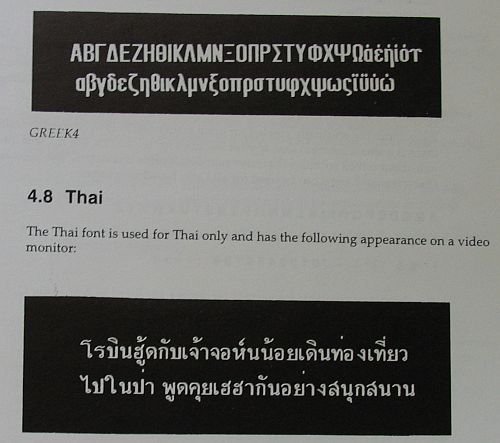

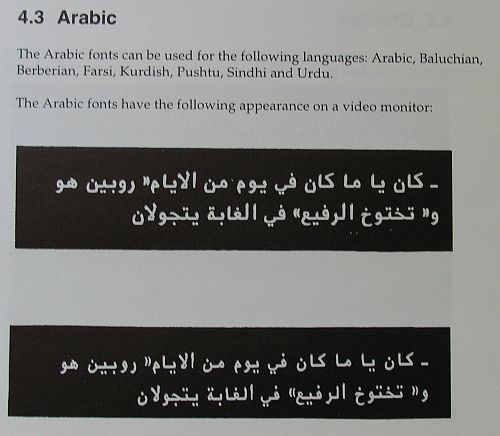

Adaption of the software for different writing systems
