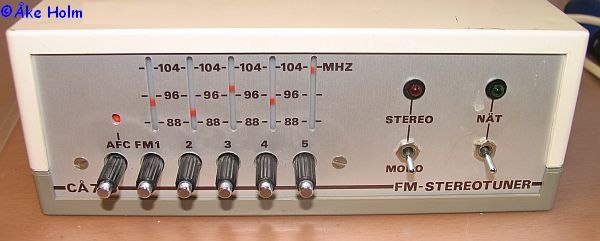

FM-tuner C-775

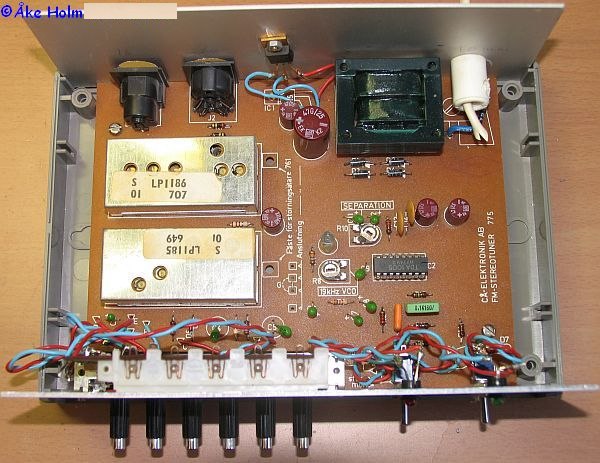

This was a kit that I sold back in 1977

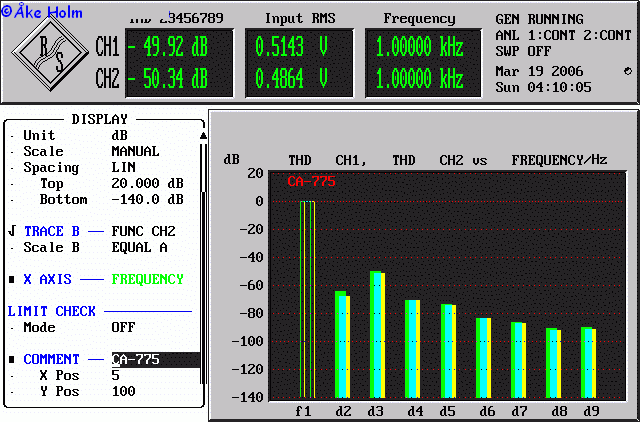

THD mono

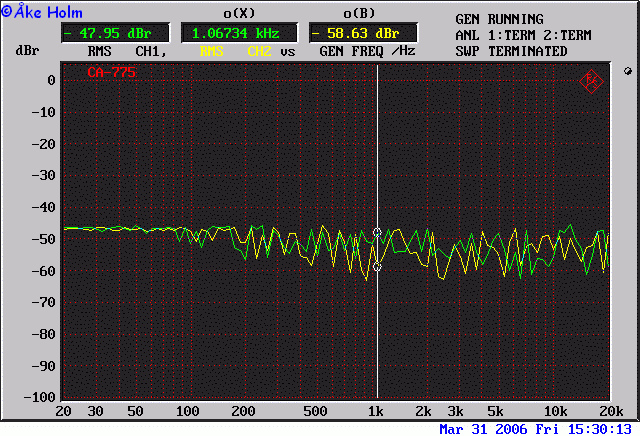

S/N unweighted

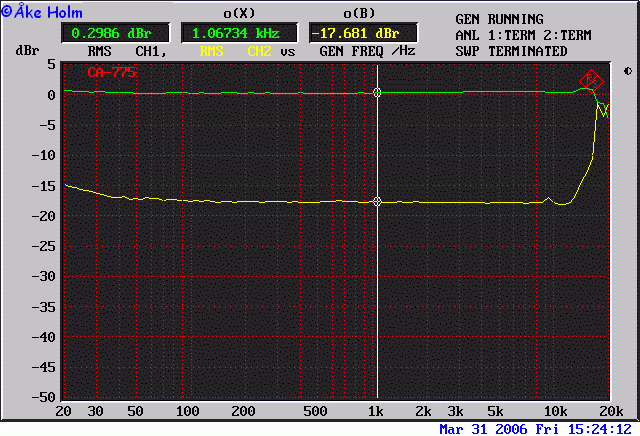

Crosstalk

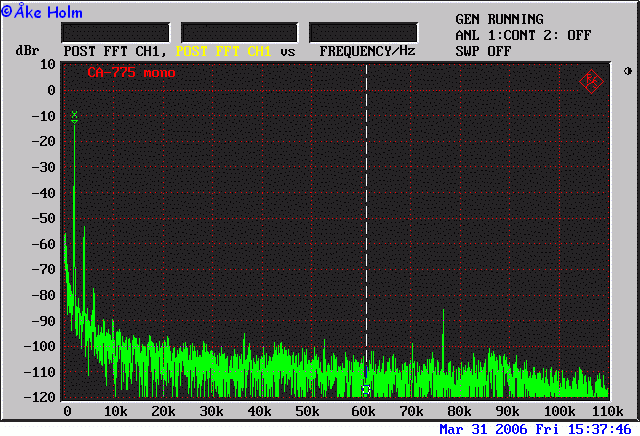

Spectrum at mono transmission 1 kHz

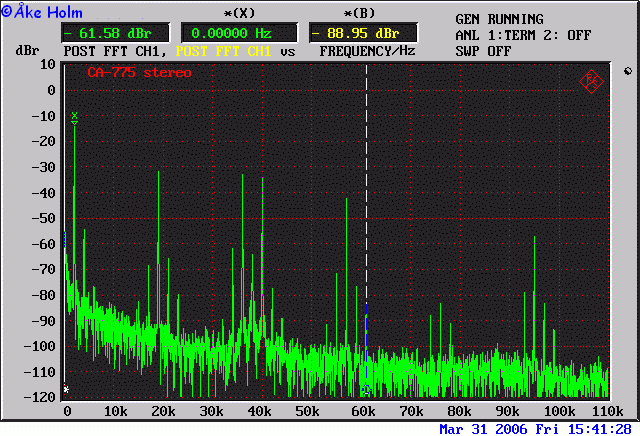

Spektrum at stereo transmission. The 1 kHz signal interferes with the 19 kHz pilot as well as the 38 kHz subcarrier with harmonics.
