Frequency Counter


A very popular instrument. From June 1973 and for more than 8 years to follow more than 800 kits was sold here in Sweden.

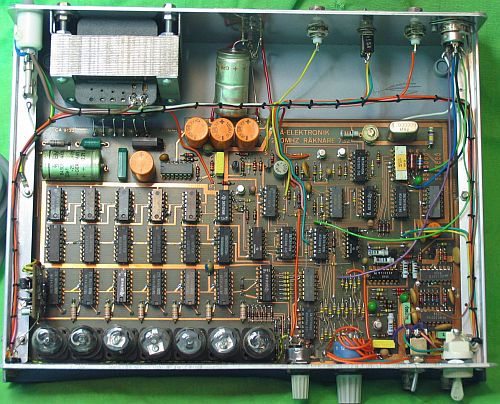

Interior view



Block diagram

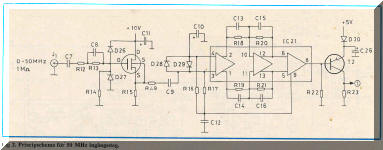

50 MHz input stage

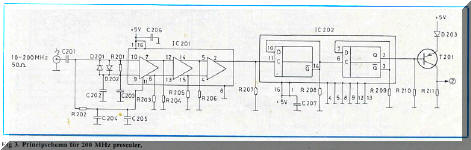

200 MHz prescaler

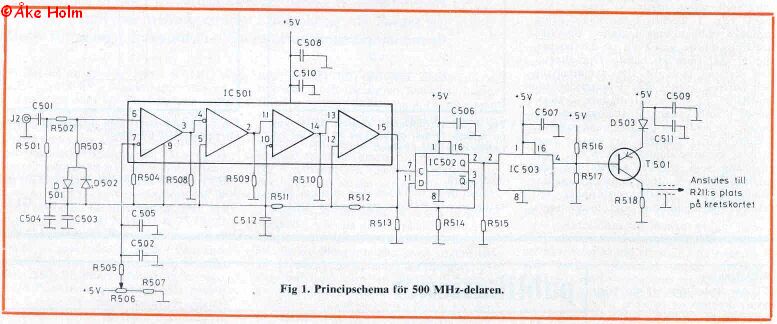

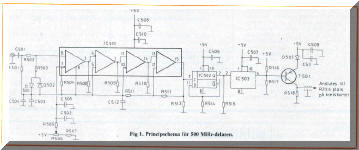

500 MHz prescaler

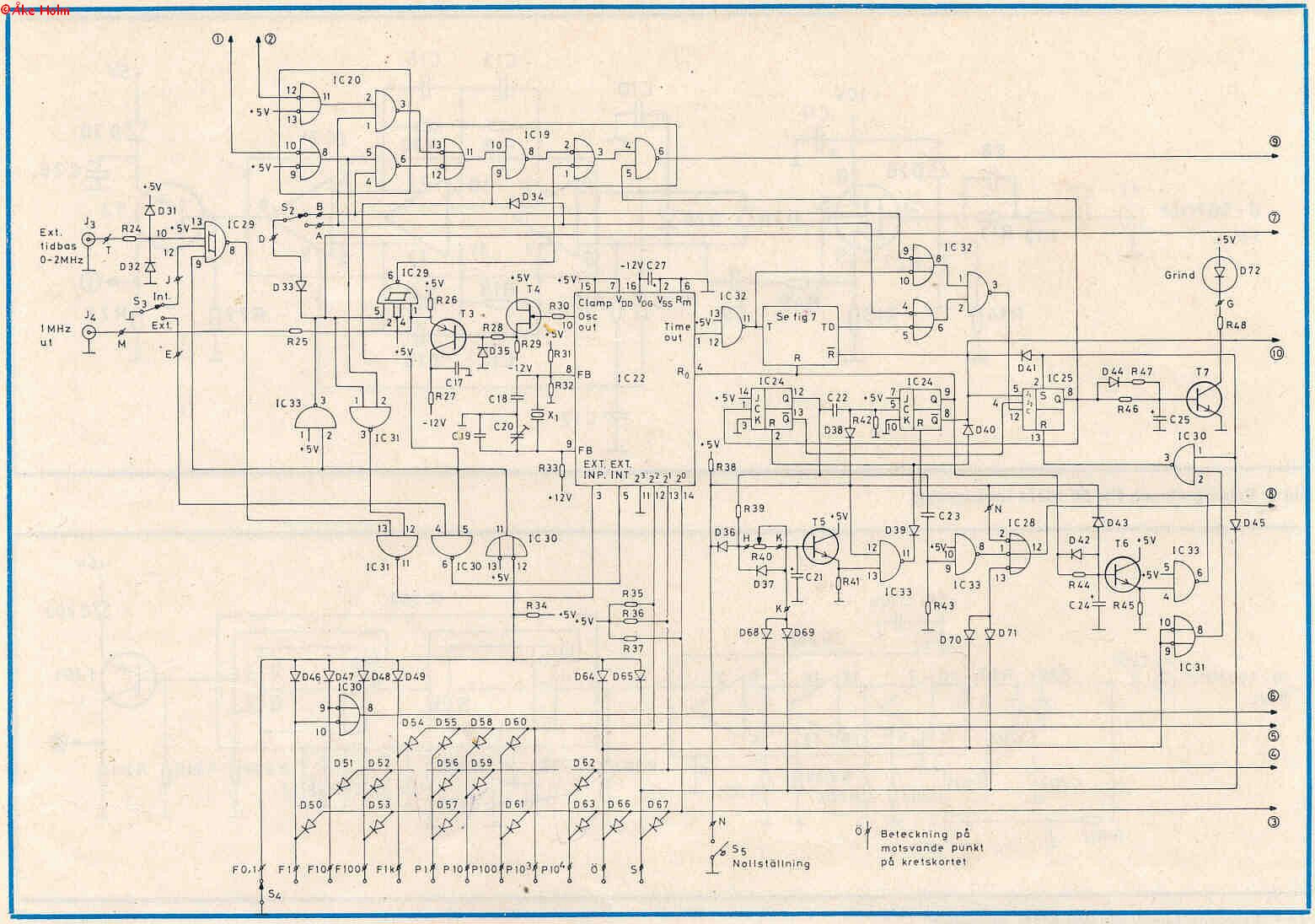

Circuit diagram counter

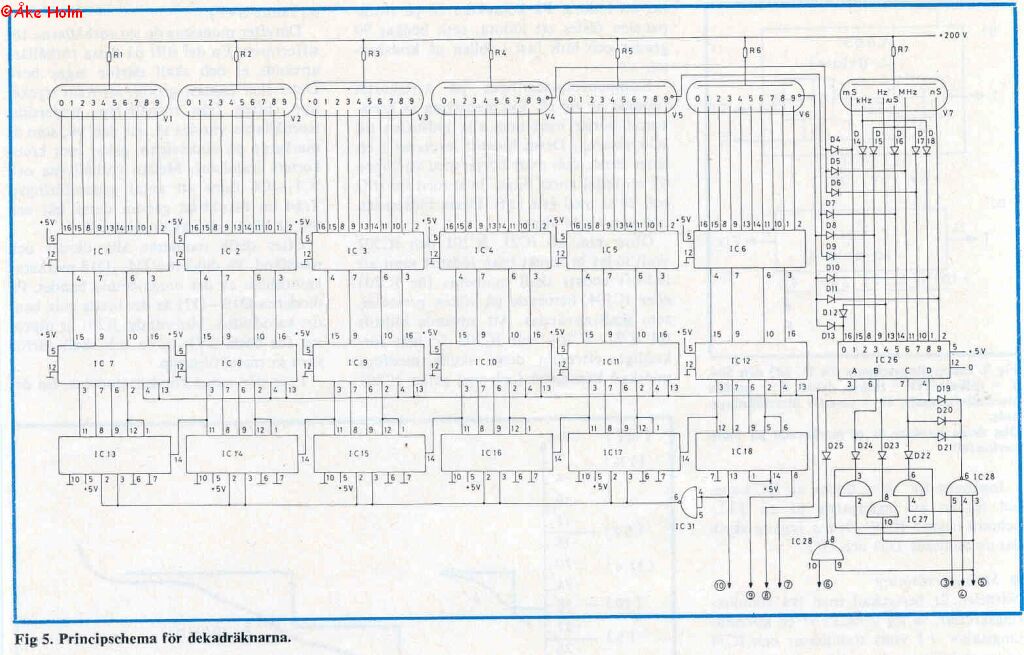

Circuit diagram display part

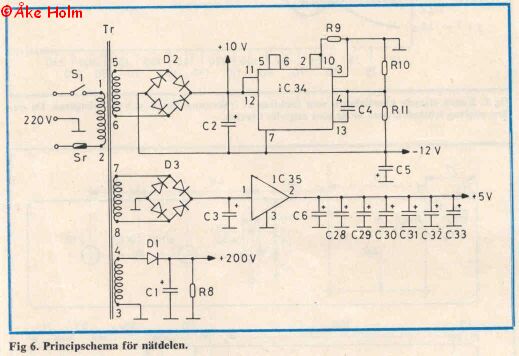

Circuit diagram power supply

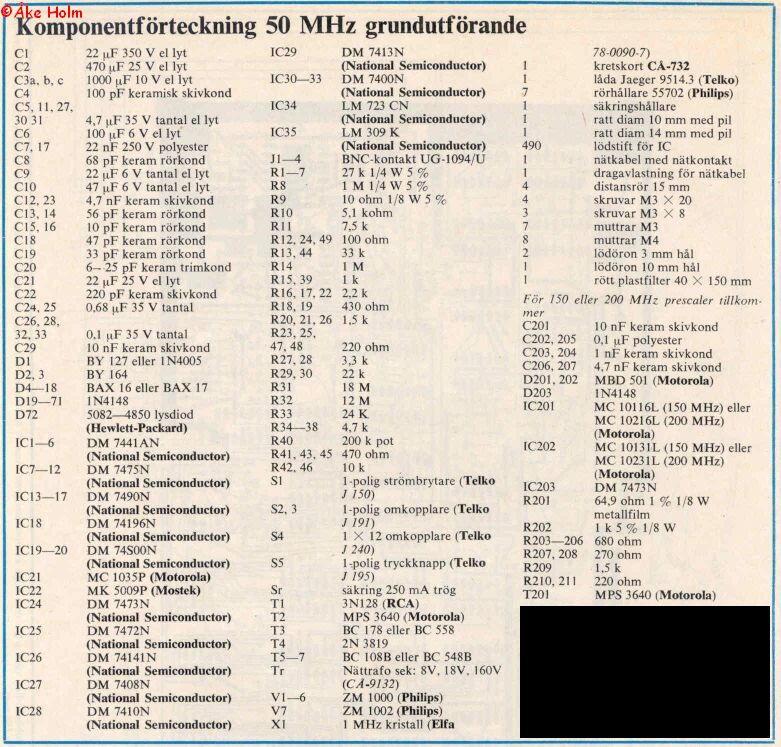

List of components

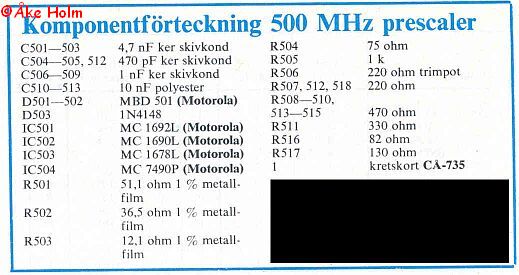

List of components 500 MHz prescaler
