PT100 Temperature Probe

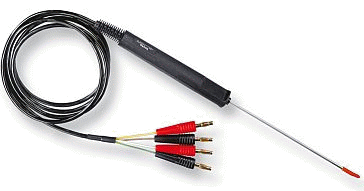

The HZ887 Temperature Probe is an immersion sensor with a platinum test resistance of PT100. It ensures excellent precision over a broad temperature range. The probe is of robust construction, waterproof and also suitable for use in air or dusty environments. The technical specifications apply for immersion depths of at least 60 mm.
The probe is connected to the measuring instrument with a 4-wire connector via 4 mm banana plugs. The length of the connector cable is 1.2 m.
Technical specifications in accordance with EN60751 (formerly IEC751):
Probe diameter: 4 mm
Measurement range: -50°C to +400°C
Accuracy, Class A: ±(0,2% reading +0,15°C)
t99 (s): 12 s (time required to display 99% of temperature change)
Connection: 4 mm banana plugs
