Hameg HZ575


Converter

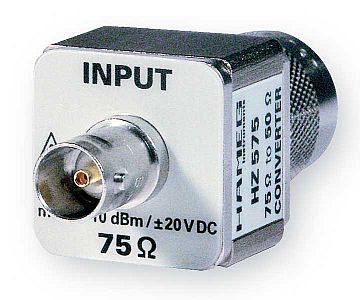

HZ575 is a 75Ω to 50Ω converter enabling measurement in 75Ω systems in connection with 50Ω input impedance spectrum analyzers.

The 75 Ω input is a 75 Ω BNC socket which is AC coupled internally. The output is a 50Ω N male connector which is DC coupled. HZ575 can also be used for reverse operation converting 50Ω to 75Ω.

Technical specifications

Frequency range: 5 MHz – 1.2 GHz
Insertion loss: less than 1 dB
Max. Level/Voltage at 75 Ω connector: +10 dBm / ±20 VDC
Max. Level/Voltage at 50 Ω connector: +10 dBm / 0 VDC
Dimensions: 25 x 25 x 58 mm (W x H x D)
Weight: 100 g
