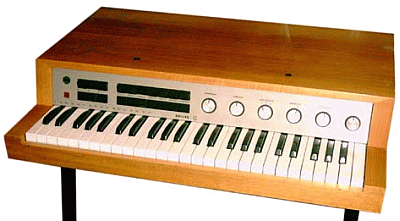

Philicorda GM751


An interesting piece of musical instrument.
It uses a mixture of tubes and transistors.
Tubes: 8 x ECC83, 1 x ECL82, 5 x Z70U, 68 x ZA1001, 1 x ZZ1000
Transistors: 3 x AC125, 2 x AC128, 4 x AD149
Diodes:

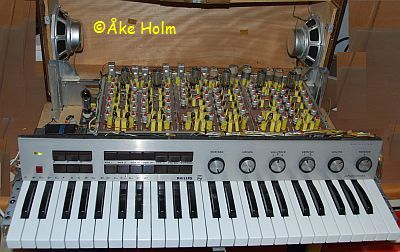

View with cover removed.

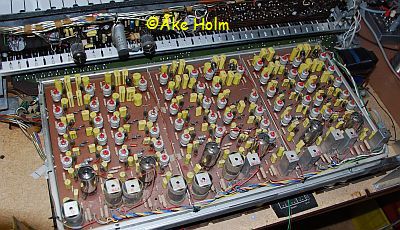

Oscillators and frequency dividers

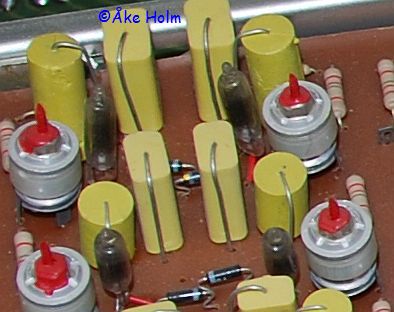

Closeup of the frequency dividers using ZA1001

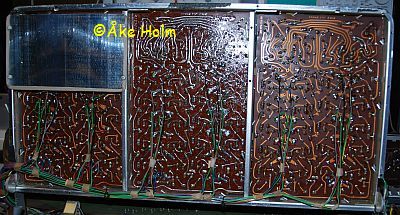

Rear side of above board

ECL82 stabilizer

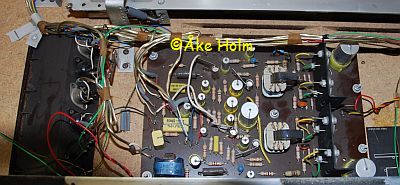

Power supply board

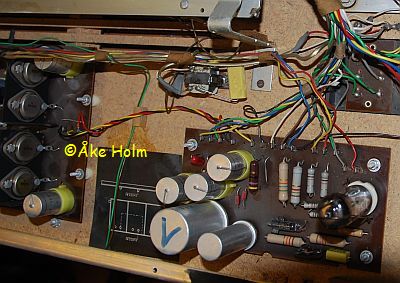

Output amplifier

Service manual as PDF here
