Dynaco SE-10



Some data from Dynaco:
Equalizer Range: 12 dB at octave intervals from 30 Hz to 15 kHz
Maximum Output: 8 Volts
Total Harmonic Distortion: 0,04% (typically less than 0,01%)
Intermodulation Distortion: 0,02% (typically less than 0,005%)
Frequency Response: 1 dB, 10 Hz to 35 kHz.
Gain: -12 dB to +6 dB
Hum and Noise: 85 dB below 3 volts output





THD less than -96 dB = 0,0015 %

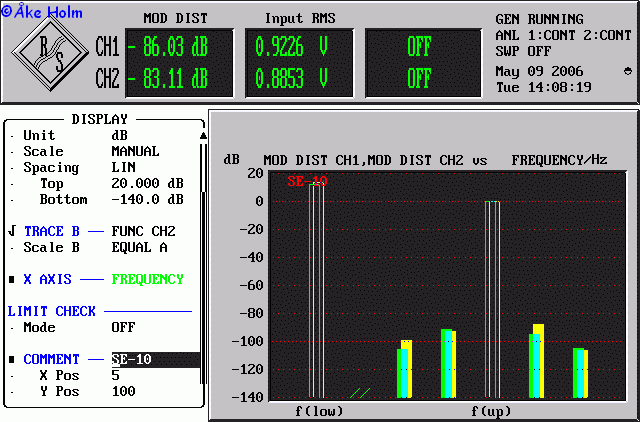

IMD less than -83 dB = 0,007 %

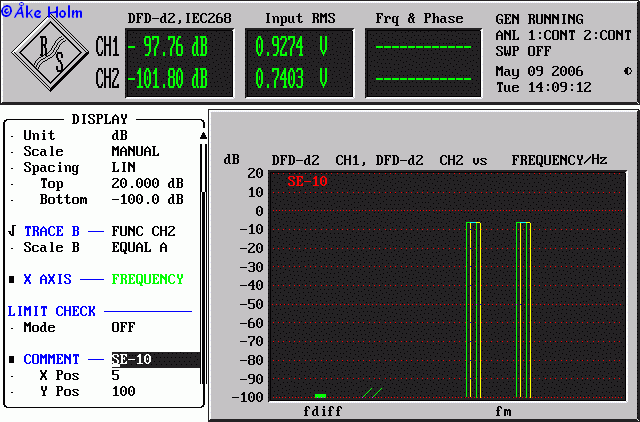

DFD less than -97 dB = 0,0014 %

Frequency response at flat position

Frequency response with 30, 120, 480, 1900 and 7700 Hz on minimum, all others on maximum

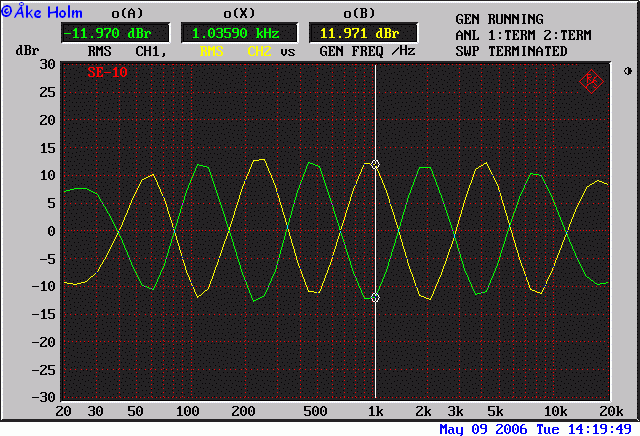

Frequency response as above but reversed on left channel

S/N linear

S/N with A-filter
