Dynaco FM-3

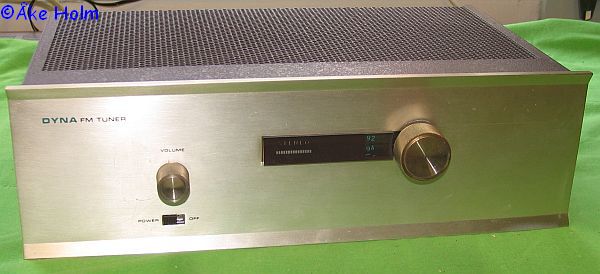

The Dynaco FM-3 stereo tuner

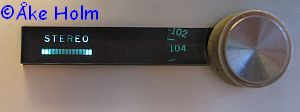

Close up of the tuning and stereo indicator EMM801.

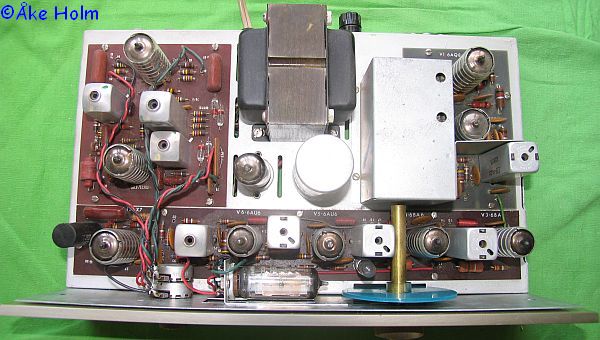

Top view with the original Dynaco MPX-decoder on the left side.

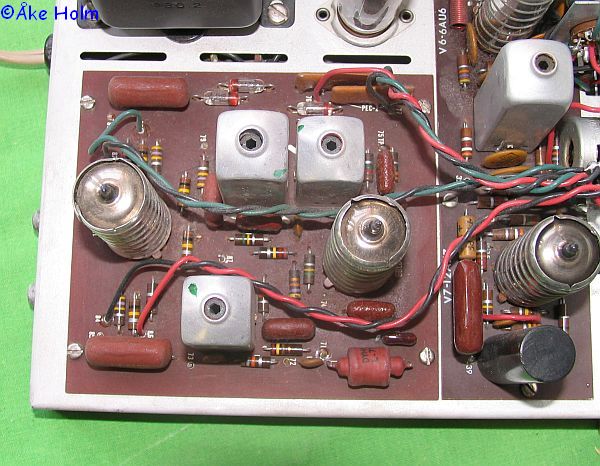

Close up of the MPX-stereo decoder


Bottom view

LP1400
For the Swedish market I made a solid state stereo decoder designed around the Mullard LP1400 module.

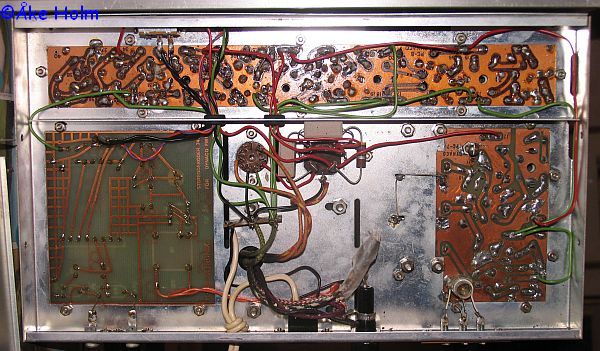

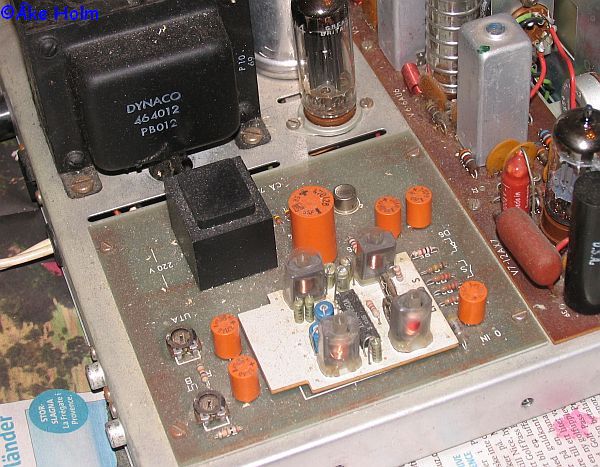

Bottom view with my decoder.

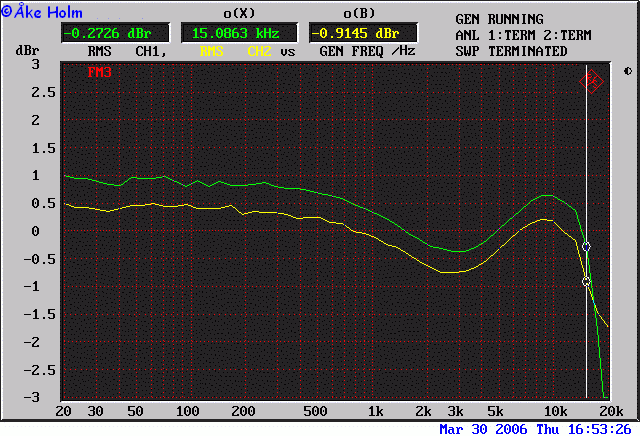

Frequency response after modifying for 50 uS deemphasis

THD at 1 kHz - mono

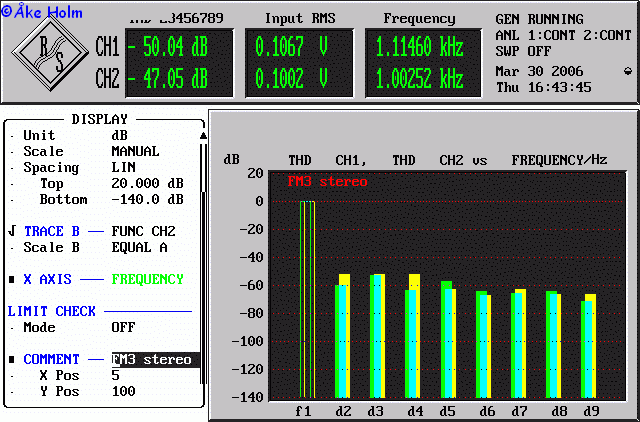

THD at 1 kHz - stereo

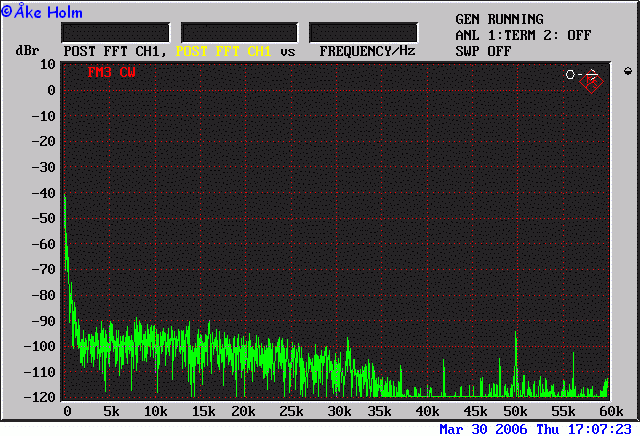

Signal to noise, 0 dB = 1 volt, FM-carrier 100 MHz 10 mV

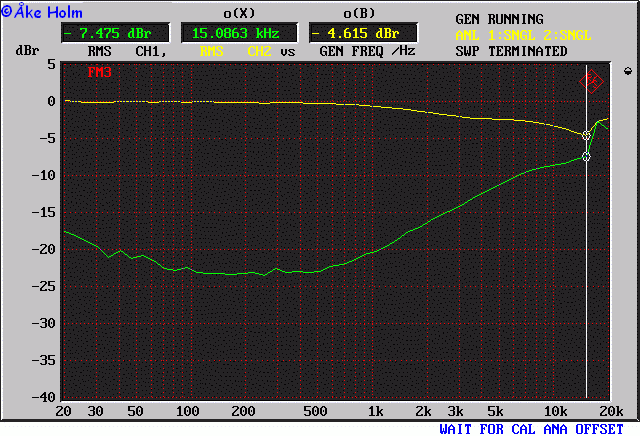

Channel separation L = green, R = yellow (the reversed looks the same)

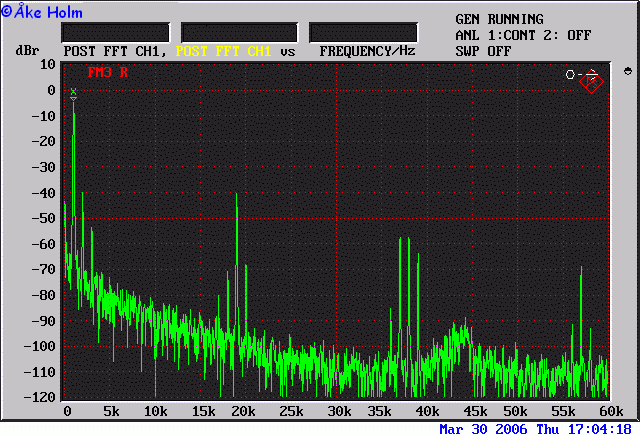

Frequency spectrum right output showing residual 38 kHz carrier and 19 kHz with sidebands

Here is a link to Greg Dunn's Dynaco site with more info about FM-3
